H8PS-8BP, Omron H8PS Counter, 24 V dc, Счетчик

Omron Digital Counter

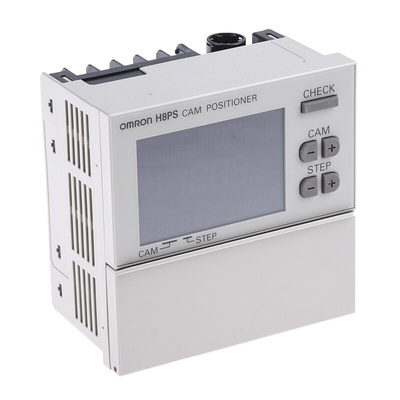

The Omron H8PS series digital counter is an LCD display electronic panel mount cam positioner. This counter is logic input, flush mounting and 8 PNP transistor output device. The counter has a voltage rating of 24VDC. It is equipped with useful functions for switching encoder rotation direction, designating the point of origin.

Construction:
The electrical signal of the absolute encoder is directly related to the angle of the shaft. The mechanical angular position is sensed by non-contact optical elements, therefore without wear. The output of an infrared diode is transmitted through a transparent code disc and diaphragm. The light/dark pattern is converted to an electrical signal by an array of photodiodes. The same code occurs only once per revolution. This encoder is defined as a single turn encoder.

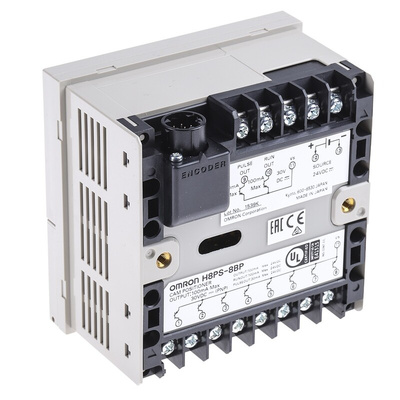

Output circuit

Types of code
Any electronic code is made out of a combination of bits. Each bit is characterised by a low (0) or high (1) signal. The combination of a series of bits is called a binary word. Several binary words make a code.

Single-step code - Only one bit on the parallel output changes state at any given point in time. There is no possibility of any concurrent state changes. Single-step code is very versatile and can maintain accuracy even allowing for slight misalignments of the disc and scanning device

Gray code - This is a Single-step code
most absolute encoders use this code.

Multiple-step codes - Natural binary code. This type of code is similar to the decimal system, except that there are only 1 and 0. Each bit, depending on its position in the binary word, has a definite value, 20 to 2n assigned.

Features and Benefits

Easy to adjust using single-function keys
Easy replacement of mechanical cam programmers.
Coder rotation direction change is possible and easy correction at the start point

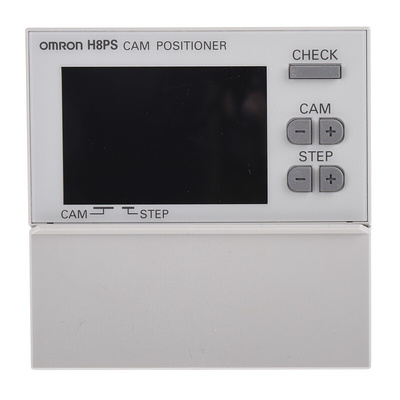

Backlit liquid crystal display
Front dimension is 96mm x 96mm

Applications

Robotic industry

Certifications

UL approved
CSA certified
EMC

Datasheet
