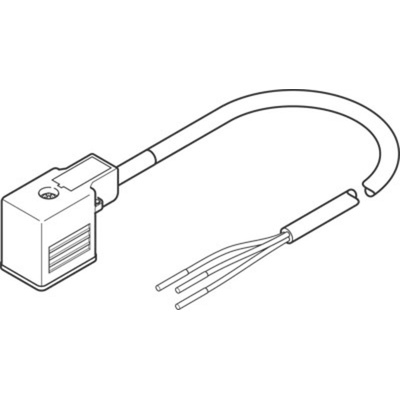

NEBV-B2W3F-P-K-0.6-N-LE3, Festo Cable, NEBV Series, For Use With Connecting Valve

Festo Cable For Use With Connecting Valve, 0.6m Length, 3 Pins - NEBV-B2W3F-P-K-0.6-N-LE3

Connect a VUVG-series valve to your automated network with this cable from Festo. It has a three-pin, type B socket to make it compatible with many standard industrial systems. This socket is angled to create a 90° connection between the power supply and device, preventing cable strain. The cable has a length of 600mm for flexibility when positioning your valve. An integrated LED gives you clear signal status, while protective circuitry helps to safeguard the wiring and attached equipment from electrical faults.

• Wide operating temperature range between -25°C and +80°C for use in demanding environments
• IP67 rating indicates it's dust-tight and suitable for temporary immersion in up to 1m of water
• Mechanically strong TPE-U jacket and housing are resistant to wear, strain and mineral oils
• Corrosion resistant for use in damp or humid industrial settings

Applications

• Industrial automation and robotics systems
• Solenoid valves
• Measurement and control instruments
• Medical devices

What's the operating voltage of this cable?

This cable works with operating voltages between 18 and 30V AC/DC, so it's a versatile option.
