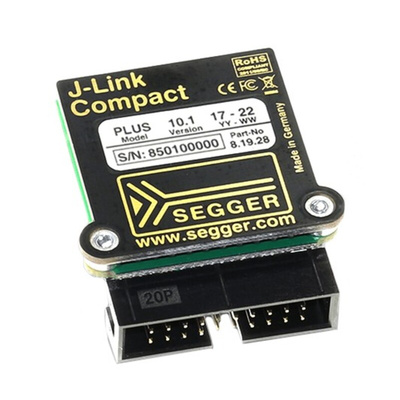

SEGGER 8.19.28 for use with J-Link Debug Probe

SEGGER Emulator

The SEGGER emulator is used with J-LINK Plus debug probe. This ARM/Cortex emulator and Renesas RX emulator include a USB cable and a 0.1in, 20-pin JTAG/SWD ribbon cable for ARM/Cortex devices. The J-Link RX Adapter (sold separately) is required for use with Renesas RX devices. Other adapters for various connection types are also available (sold separately).

Features and Benefits

No power supply is required (driven and powered through USB)
Unlimited flash breakpoints (Unlimited flash breakpoints)
ARM remote debug interface (RDI)
Remote GDB server for the GNU project debugger (GDB server)
Flash loaders and software to program internal and external flash of your microcontroller (J-Flash) is included

Applications

Embedded development
Educational institutions
Robotics
Electronics laboratories
Automation

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
