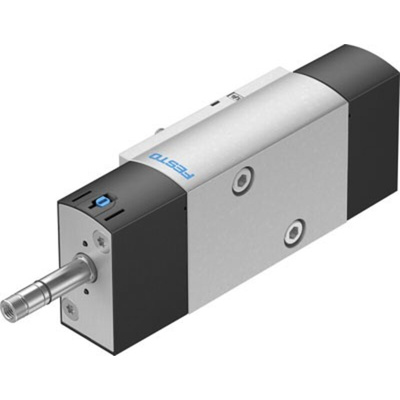

VSNC-FTC-M52-MD-G14-FN, Festo 3/2 Pneumatic Solenoid Valve - Electrical G 1/4 VSNC Series, 577277, Клапан

FESTO VSNC Series Solenoid Valves - Pneumatic Flow Control Valve

Introducing our VSNC solenoid valve series from FESTO. The series feature valves that are called "Pilot Valves". These Valves are used for single and double acting quarter turn linear actuators. The valves are convertible and could be changed from 3/2 way to 5/2 way through turning the seal 180°. This feature allows you to operate single or double acting actuators with one valve. These solenoid valves meet the highest safety standards.

Features and Benefits

• Port pattern in accordance with VDI/VDE 3845 - Such as DRD/DRE, DAPS, DFPB and DLP
• Mounting can be achieved on actuators without a NAMUR interface. (must be with appropriate accessory - i.e.: Connection Kit)
• A great solution for process automation
• Mechanical springs (single-solenoid valves) ensure safe switching to the initial position - in the event of a power failure
• Conversion from 3/2-way to 5/2-way valve through turning the seal, single solenoid
• Facilitates single or double acting actuators, controlled with one valve
• Durable and robust
• Mechanical spring reset
• Operating temperature ranges between -20°C to 60°C
• They can be used in process automation

Did you know?

Solenoid valves generate a magnetic field from an electric current, in turn they operate a mechanism used to regulate the opening of fluid flow valves.

Festo 5/2 Pneumatic Solenoid Valve

The Festo 5/2 pneumatic G 1/4 VSNC series solenoid valve is a pilot valve for single and double-acting quarter turn and linear actuators with a port pattern in accordance with VDI/VDE 3845, such as DAPS, DFPB and DLP. They can also be mounted on actuators without a NAMUR interface, e.g. diaphragm actuators thanks to appropriate accessories such as a connection kit. They are designed for the requirements of process automation. Mechanical springs (single-solenoid valves) ensure safe switching to the initial position in the event of a power failure.

Features and Benefits

• Robust and versatile design
• Transport use test with severity level 2 to FN 942017-4 and EN 60068-2 which ensures high oscillation strength
• Aluminium wrought alloy and aluminium die casting painted are used as housing and piston material to provides rigidity
• High working temperature and a wide range of flow rate of 1000l/min
• The material used in fabrication has high stiffness and anti-corrosive properties that gives smooth, straight and rigid actuator output
• Wide range of mounting options, reliable ergonomic, reliable operation and servicing, easy installation and replacement

Applications

• Automatic irrigation systems
• Vacuum application for compressor unloading during start
• Compressed air applications
• Central heating applications
• Brewery equipment
• Reverse osmosis systems
• Fuel switching vehicles
• Manage water flow for shower timers

Certifications

• ISO8573-1:2010

Datasheet

VSNC-FTC-M52-MD-G14-FN Specification Sheet
