VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16, Festo Angle Seat type Pneumatic Actuated Valve, G 1/2in, 40 bar, Клапан

Festo Angle Seat Pneumatic Valve, G 1/2 Process Valve Connection - VZXF Series - VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16

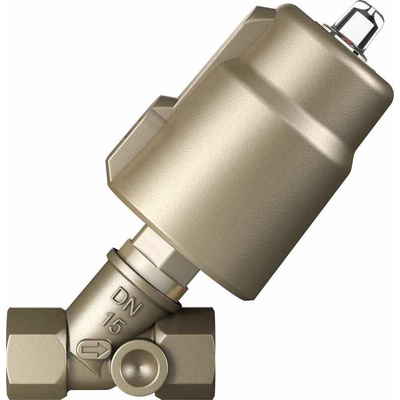

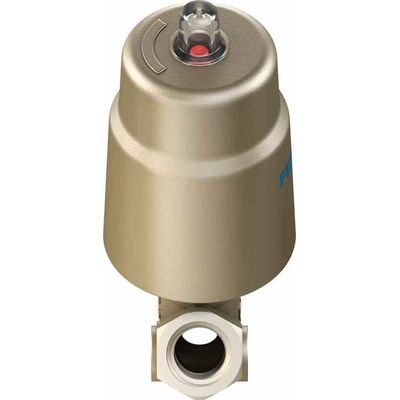

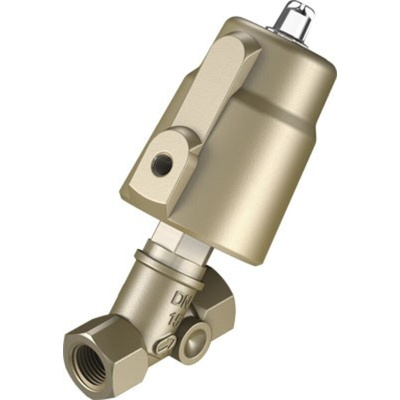

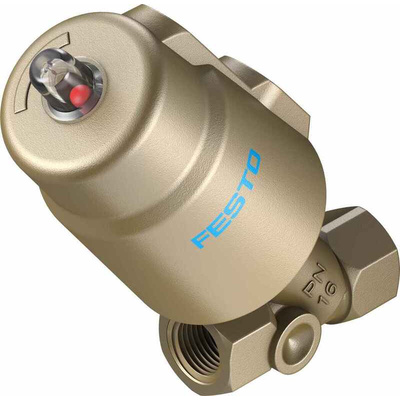

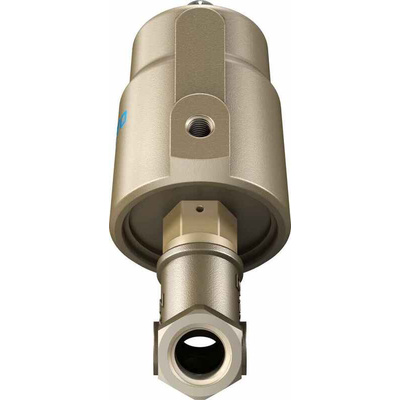

Looking for a reliable way to regulate the flow of viscous liquid or potentially contaminated compressed air in a rigid piping system? This angle seat valve from Festo offers a robust, low-maintenance solution that is suitable for high-viscosity media up to 600 mm²/s. It maximises the flow rate without the need for any pressure differential. The valve is pneumatically actuated with a 'normally closed' (NC) default position, so there's no need to worry about flow continuing if air pressure is lost.
The seat seal is made from polytetrafluoroethylene (PTFE) – a hard-wearing material with high thermal resistance that allows the valve to operate at temperatures between -40°C and +200°C. The stainless-steel housing provides durability and high resistance to corrosion.

• Gunmetal (red brass) housing for durability against vapour and corrosion
• Operating pressure of 6 to 10 bar for use in heavy-duty industries
• 'Normally closed' (NC) default valve position means you can use it as a safety valve
• Spring return type with a thread size of 1/2 in

Datasheet

VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16 Specification Sheet

Instruction Sheet
