VZXF-L-M22C-M-B-G1-230-M1-H3B1T-50-10, Festo Angle Seat type Pneumatic Actuated Valve, G 1in, 40 bar, Клапан

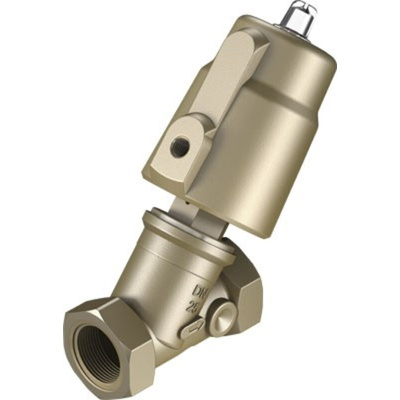

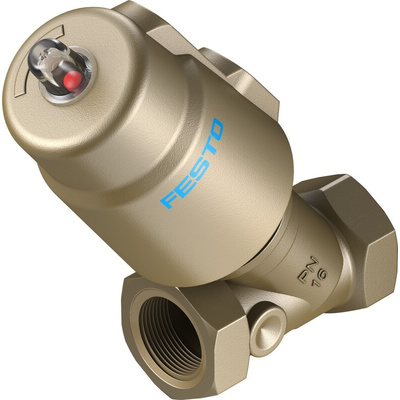

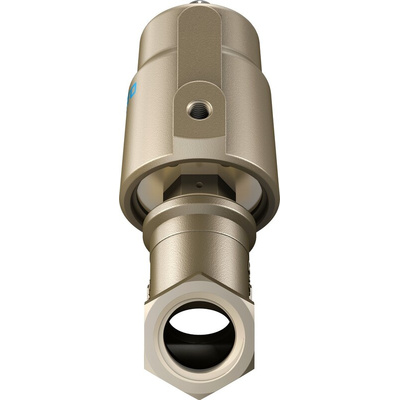

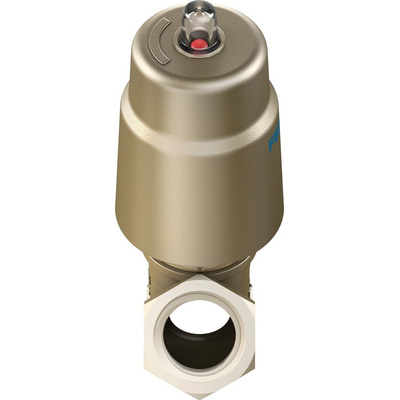

Festo Angle-Seat Pneumatic Valve, G1, 6 to 10 Bar - VZXF-L-M22C-M-B-G1-230-M1-H3B1T-50-10

Control the flow of gas or liquid in a rigid piping system with this angle-seat valve from Festo. Its insensitivity to vapour or slightly contaminated media, along with its compatibility with various substances including inert gases, water, compressed air and hydraulic oil, make it a versatile choice. The pneumatically controlled valve's NC function stays closed should you experience pressure loss in a control circuit. This reduces the chance of accidents in your workspace. Its simple design makes it easy to clean so you can spend less time on maintenance.

• Sturdy gunmetal housing that's long-lasting and designed to withstand harsh operating conditions
• Medium temperature of -40°C to +200°C make it compatible with hot and cold liquids and gases
• Lightweight at 1.5g for minimal strain on your system
• Resistant to chemicals and heat for improved versatility

Applications

• Petrochemical industry
• Automotive manufacturing
• Mining and minerals processing

What's the ambient operating temperature range of this angle-seat valve?

This valve is able to operate reliably in ambient temperatures ranging from -10°C to +60°C.

What material is the valve's seals made from?

This valve's seals are made from PTFE (polytetrafluoroethylene), a tough and non-flammable synthetic resin. This material is also known as Teflon.

Datasheet

VZXF-L-M22C-M-B-G1-230-M1-H3B1T-50-10 Specification Sheet

Catalogue - Angle seat valves VZXF
