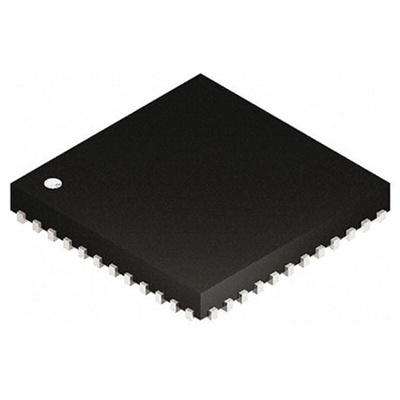

STMicroelectronics STSPIN32F0, BLDC Brushless DC Motor Controller 600mA 48-Pin, VFQFPN, Драйвер двигателя

The STSPIN32F0 is a System-In-Package providing an integrated solution suitable for driving three-phase BLDC motors using different driving modes. It embeds a triple half-bridge gate driver able to drive power MOSFETs or IGBTs with a current capability of 600 mA (sink and source). The high- and low-side switches of same half-bridge cannot be simultaneously driven high thanks to an integrated interlocking function. An internal DC/DC buck converter provides the 3.3 V voltage suitable to supply both the MCU and external components.

Extended operating voltage from 8 to 45 V
Three-phase gate drivers
600 mA sink/source
Integrated bootstrap diodes
Cross-conduction prevention
16 general-purpose I/O ports (GPIO)
5 general-purpose timers
12-bit ADC converter (up to 9 channels)
