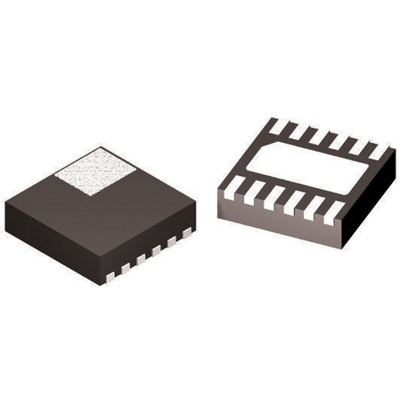

STMicroelectronics L6362ATR Line Transceiver, 12-Pin VFDFPN, Приемопередатчик

The L6362A is an IO-Link and SIO mode transceiver device compliant to PHY2 (3-wire connection) supporting COM1 (4.8 kbaud), COM2 (38.4 kbaud) and COM3 (230.4 kbaud) modes. The output stage can be configured as high-side, low-side or push-pull and it can drive resistive, capacitive and inductive loads. It can be connected to a sensor chip with the industrial 24 V environment.

Fully protected
Reverse polarity
Overload with cut-off function
Overtemperature
Undervoltage and overvoltage
GND and VCC open wire
-40 to +125 °C operating ambient temperature
Selectable output stages:high-side, low-side, push-pull
Suitable to drive L, C and R loads
30 μF output load drive capability
Switching capability of inductors up to 500 mJ
Wake-up detection supported
Fast demagnetization of inductive loads
