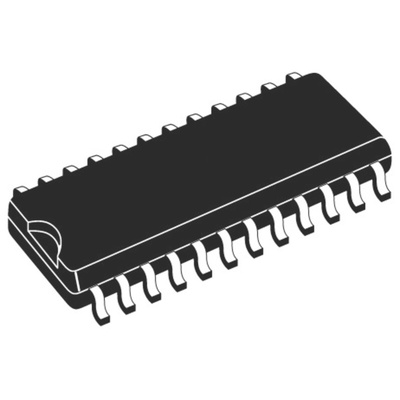

STMicroelectronics STGAP1AS, MOSFET 1, 20 mA, 36V 24-Pin, SOIC

The STGAP1AS is a galvanically isolated single gate driver for N-channel MOSFETs and IGBTs with advanced protection, configuration and diagnostic features. The architecture of the STGAP1AS isolates the channel from the control and the low voltage interface circuitry through true galvanic isolation. The gate driver is characterized by 5 A capability, making the device also suitable for high power inverter applications such as motor drivers in hybrid and electric vehicles and in industrial drives.

High voltage rail up to 1500 V
Driver current capability:5 A sink/source current at 25 °C
dV/dt transient immunity ± 50 V/ns in full temperature range
Overall input/output propagation delay:100 ns
Separate sink and source for easy gate driving configuration
Negative gate drive ability
SPI interface for parameters programming
Temperature warning and shutdown protection
Self-diagnostic routines for protection features
Full effective fault protection
