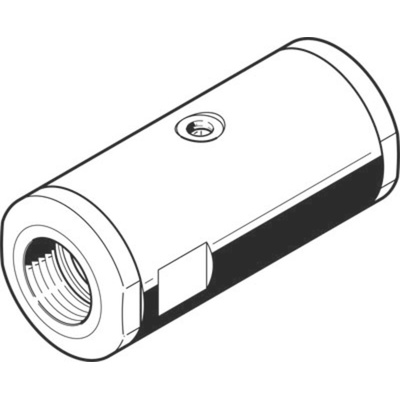

VZQA-C-M22U-25-GG-ALALE-4, Festo VZQA Series Tube Pinch Valve, G 1/2 Female Inlet Port, 25mm Tube Inlet Port x G 1/2 Female Outlet Port x 25mm

FESTO VZQA Pneumatic Pinch Valves

The VZQA pneumatic actuated pinch valve is a 2 way valve fitting and is used for controlling the flow of different materials in the tubing or pipe. The valve is either open or closed, both ensure that there is minimum flow resistance and help prevent the fitting becoming blocked or clogged up.

An open valve enables free flowing material, however the sleeve will close when the fitting is pressurised, therefore shutting off the flow in the tube or pipe. This is ideal for shutting off liquids containing solid particles or solid materials.

A closed valve will open when the valve is pressurised, which releases the flow of material in the tube or pipe, and then will close again when the pressure stops due to the spring in the fitting. This valve is ideal for use with liquid or gases such as air.

Features and Benefits

• Normally open (N/O) and normally closed (N/C) options
• Simple and easy to install
• Pneumatic fittings valve
• Easy to clean hygienic design
• Elastomer pinch valve sleeve shut off
• Sealing cartridge can be replaced without specialist tools
• Multiple connector variants
• Stainless steel and aluminium housing
• End cap available for demanding applications

The pinch valve is a 2/2-way valve for controlling material flows. It is open in normal position. The shut-off element is a tubular pinch valve sleeve made from elastomer. The sleeve closes when the valve is pressurised, completely shutting off the material flow. When pressure is no longer applied, the normally closed valve will open due to the inherent stress of the pinch valve sleeve or the pressure of the medium. The valve can be used to shut off liquid and dusty media, solids (granulate) and mixtures of substances. The free passage when the valve is opened ensures minimum flow resistance and prevents the valve becoming blocked or clogged.

The valve can be used to control
liquid and dusty media, solids and material mixtures
Easy-to-clean housing (clean design)
Open or closed in normal position
Pinch valve sleeve made from elastomer
