DARQ-K-X1-A1-F05-20-R1, Festo Adapter, DARQ Series, For Use With Mounting Sensor Boxes On Quarter Turn Actuators

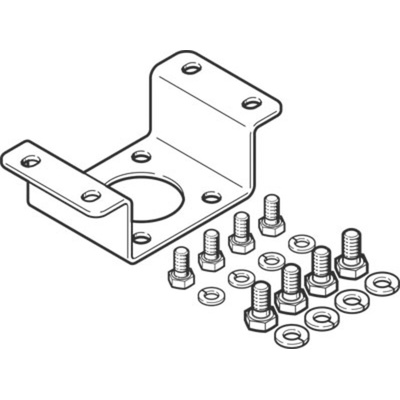

FESTO Mounting Bridge DARQ-K-P-

Mounting bridges from FESTO designed for connecting positioners and actuators for process automation.

Features and Benefits

• High alloy steel
• For mounting on standard actuators as per VDI/VDE 3845
• Mounting screws included
• Includes paint-wetting impairment substances
• RoHS compliant

Product Application Information

These mounting bridges can be attached to FESTO positioners CMSX series and the DFPD/DFPI series quarter turn/linear actuators.

Sensor boxes SRBC are used for electrical feedback and control of the position of process valves actuated using pneumatic quarter turn actuators. They can be mounted quickly and easily on quarter turn actuators with a hole pattern to VDI/VDE 3845 using mounting adapters. The sturdy design of the sensor box SRBC is ideal for the harsh conditions in process automation.

Sturdy aluminium housing with two
cable inputs M20x1.5
Captive stainless steel screws on the housing cover
Pre-assembled stainless steel mounting adapter 80x30 H20 for ease of mounting on standard drives as per VDI/VDE 3845
Cable connector and blanking plug included in the scope of delivery
3D OPEN/CLOSED position indicator
Mechanical, inductive or magnetic
switch variants
Number of switches: 2
Mounting adapter for mounting sensor boxes on quarter turn actuators with hole pattern 30 x 80 mm, shaft height 20 mm
Included in the scope of delivery of the sensor box and pre-assembled

Accessories

Datasheet

DARQ-K-X1-A1-F05-20-R1 Specification Sheet
