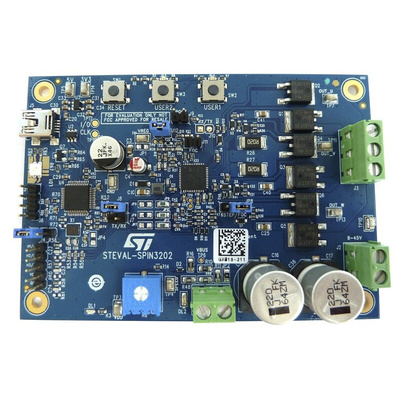

The STEVAL-SPIN3202 three-phase brushless DC motor driver board is an evaluation board based on the STSPIN32F0A and STD140N6F7 MOSFETs. It provides an affordable and easy-to-use solution for the implementation of low voltage motor driving applications. The board is designed for sensored or sensorless vector control - FOC and six-step algorithms with single shunt sensing.
Input voltage from 7 V to 45 V
Output current up to 15 Arms
Power stage based on STD140N6F7 MOSFETs
Embedded 3.3 V buck regulator
Embedded 12 V LDO regulator
Single shunt current sensing
Digital Hall sensors and encoder input
Overcurrent comparator
Bus voltage sensing
Fully compatible with STM32 PMSM FOC software development kit
6-step sensorless and sensored firmware supported
Embedded ST-LINK/V2-1
Easy user interface with buttons and trimmer
STM32 FW boot loader supported
