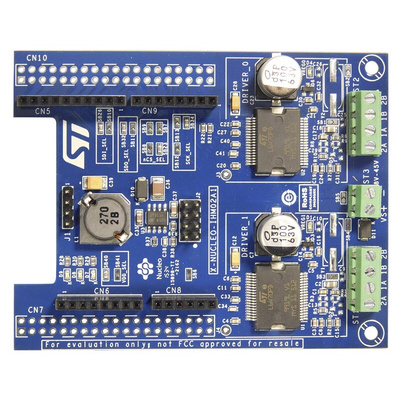

STMicroelectronics Two Axis Stepper Motor Driver Expansion Board for X-NUCLEO-IHM02A1 for STM32 Nucleo

The X-NUCLEO-IHM02A1 is a two axis stepper motor driver expansion board based on the L6470. It provides an affordable and easy-to-use solution for low voltage motor control driving for stepper motors in your STM32 Nucleo project. The expansion board includes two L6470s, a fully-integrated micro stepping motor driver used to control stepper motors by means of high-end motion control commands received through SPI. It is capable of driving one or two stepper motors when plugged into an STM32 Nucleo board.

USART communication
enables receiving of commands from a PC
enables sending information to a PC
Requires no dedicated cable, uses the Type A to Type Mini-B USB cable already used to supply the STM32 Nucleo board
SPI interface (may be connected in a daisy chain configuration)
Equipped with Arduino UNO R3 connectors
Layout compatible with ST morpho connectors
Five LEDs

Datasheet
