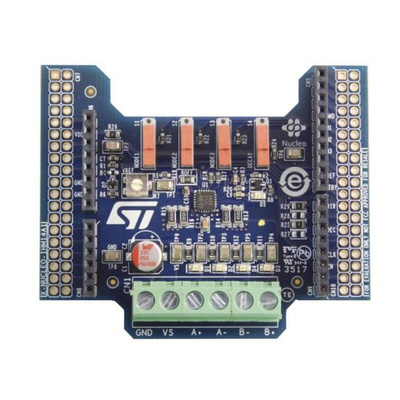

The X-NUCLEO-IHM14A1 motor driver expansion board is based on the STSPIN820 monolithic driver for stepper motors. It represents an affordable, easy-to-use solution for driving stepper motors in your STM32 Nucleo project, implementing motor driving applications such as 2D/3D printers, robotics and security cameras. The STSPIN820 implements a PWM current control with constant OFF time adjustable via an external resistor and a microstepping resolution up to the 256th step.
Operating voltage: 7 to 45 V
Output current up to 1.5 Arms
Fine tuning microstepping up to the 256th step
Current control with adjustable OFF time
Full protection set:
Overcurrent protection
Short-circuit protection
Under voltage lock out
Thermal shutdown
Compatible with Arduino UNO R3 connector
Compatible with STM32 Nucleo boards
RoHS compliant
