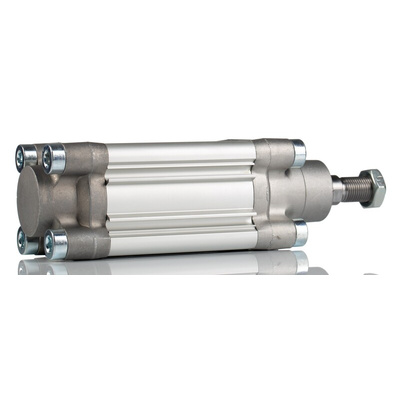

PRA/802050/M/50, Norgren Pneumatic Piston Rod Cylinder - 50mm Bore, 50mm Stroke, PRA/802000/M Series, Double Acting, Пневмоцилиндр

IMI Norgren Pneumatic Piston Rod Cylinder, Double Acting, Air Cushioning Type - PRA/802000/M Series - PRA/802050/M/50

Achieve reliable linear motion in your applications with this IMI Norgren double-acting pneumatic piston rod cylinder. It advances and retracts compressed air through both ports to improve power delivery and boost performance. The unit features double-ended cushioning that absorbs jolts to prevent misalignment and potential system downtime. Thanks to compact dimensions of 178.5 (length) by 65 (width) and 65mm (height), you can easily install this compact unit in setups where space is tight.

Features & Benefits

• Wide operating temperature range from between -20°C and +80°C for use in challenging environments
• Operating pressures from 1 to 12 bar for versatile applications
• Anodised aluminium body and stainless rod resist corrosion for durability

Applications

• Industrial applications
• Aerospace industry
• Medical imaging installations
• Pneumatic tools

Is this cylinder airtight?

Yes, it has polyurethane seals and nitrile rubber O-rings, so it's an airtight and energy-efficient unit. These features also reduce friction to improve durability.

What affects the speed of a pneumatic cylinder?

Factors such as load, pressure, flow rates and the length of the tubing between the cylinder and control valve affect the speed of pneumatic cylinders.

Datasheet

Brochure - ISO Standard Cylinders
