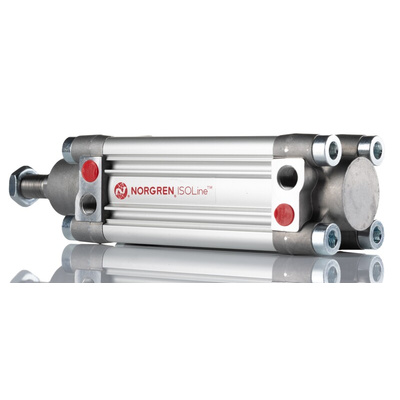

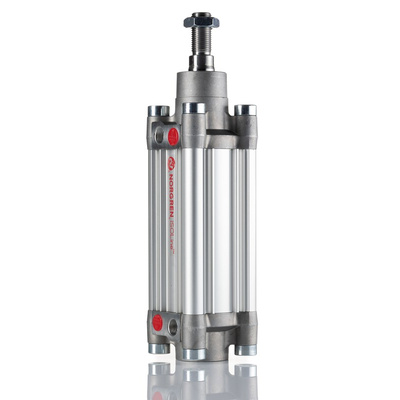

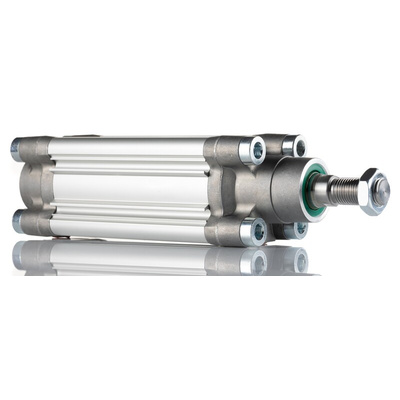

PRA/802050/M/80, Norgren Pneumatic Piston Rod Cylinder - 50mm Bore, 80mm Stroke, PRA/802000/M Series, Double Acting, Пневмоцилиндр

IMI Norgren Pneumatic Piston Rod Cylinder, Air Cushioning Type, G1/4 Port Thread - PRA/802000/M Series - PRA/802050/M/80

Choose this pneumatic piston rod cylinder from IMI Norgren to keep your workflow on the straight and narrow. It's a double-acting device that generates linear motion in both directions so your system runs seamlessly. The assembly's made from anodised aluminium and stainless steel, so it can take the strain of mechanical stress in challenging industrial environments. As the 50mm bore and 80mm stroke deliver high output, this is a solid option in heavy-duty applications. This cylinder accommodates filtered, lubricated and non-lubricated compressed air, meaning it's a versatile choice that's ready for anything.

Features & Benefits

• Compact dimensions of 178.5 (L) x 65 (H) x 65mm (H) make it a space-efficient choice for busy systems
• PUR seals resist corrosion for a longer service life
• Up to 12 bar operating pressure suits demanding applications

Applications

• Mining and mineral processing
• Hoisting equipment
• Storage facilities and warehouses

Can I use this cylinder in industrial settings?

Yes. This item operates in a broad temperature range between -20°C and +80°C, so it's a useful choice for harsh industrial conditions.

Datasheet

Brochure - ISO Standard Cylinders
