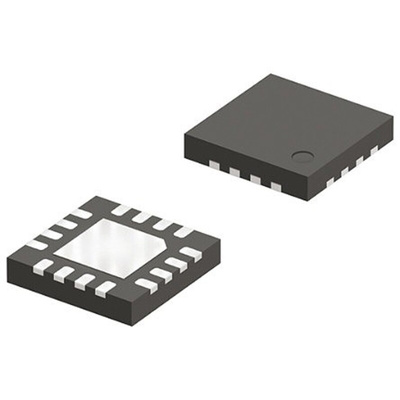

Vishay DG2523DN-T1-GE4 Analogue SPDT Switch Dual DPDT, Quad SPDT 1.8 to 5.5 V, 16-Pin QFN

The DG2523 and DG2524 are four-channel single-pole double-throw (SPDT) analog switches. The DG2523 has two control inputs that each controls a pair of single-pole double-throw (SPDT). It is also known as a two-channel double-pole double-throw (DPDT) configuration. The DG2524 has an EN pin to enable the device when the logic is low. The parts are designed to operate from 1.8 V to 5.5 V single power rail. All switches conduct equally well in both directions, offering rail to rail signal witching and can be used both as multiplexers as well as de-multiplexers.

1.8 V to 5.5 V single supply operation
Low resistance: 0.4  / typ. at 2.7 V
Highly flat and matched Ron
Low parasitic capacitance,
Typical switch off leakage of 40 pA
High bandwidth: 310 MHz
Guaranteed logic high 1.2 V, logic low 0.3 V
Break before make switching
Signal swing over V+ capable
Power down protection
Latch up current: 300 mA (JESD78)
