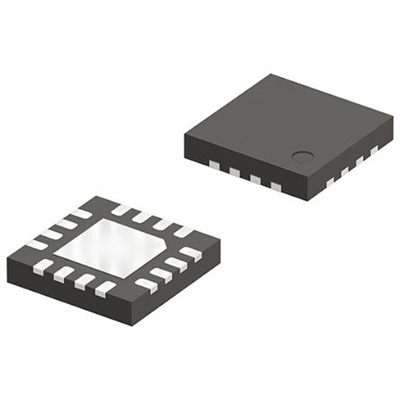

Vishay DG612EEN-T1-GE4 Analogue Switch Quad SPST 3 to 12 V, 16-Pin miniQFN

The DG611E, DG612E, and DG613E contain four independently selectable SPST switches. They offer improved performance over the industry standard DG611 series. The DG611E and DG612E have all switches normally closed and normally open respectively, while the DG613E has 2 normally open and 2 normally closed switches. They are designed to operate from a 3 V to 12 V single supply or from ± 3 V to ± 5 V dual supplies and are fully specified at +3 V, +5 V and ± 5 V. All control logic inputs have guaranteed 2 V logic high limits when operating from +5 V or ± 5 V supplies and 1.4 V when operating from a +3 V supply.

Low charge injection (1.4 pC typ.)
Leakage current < 0.25 nA at 85 °C
Low switch capacitance (Csoff 3 pF typ.)
Low RDS(on) - 115  max.
Fully specified with single supply operation at
3 V, 5 V, and dual supplies at ± 5 V
Low voltage, 2.5 V CMOS/TTL compatible
1 GHz, 3 dB bandwidth
Excellent isolation performance (-59 dB at 10 MHz)
Excellent crosstalk performance (-74 dB at 10 MHz)
