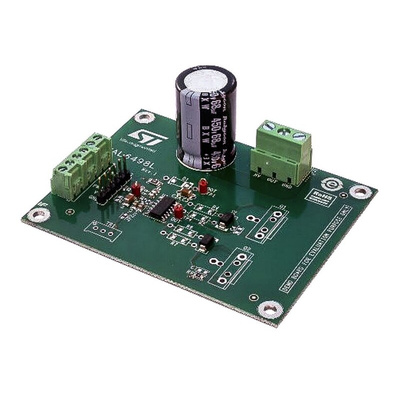

STMicroelectronics EVAL6498L, MOSFET 1, 5V 14-Pin, SO

STMicroelectronics Gate Driver

The STMicroelectronics gate driver is a high voltage device manufactured with the BCD6 "OFF-LINE" technology. It is a single-chip half-bridge gate driver for N-channel power MOSFETs or IGBTs. The MOSFET can sink 2.5A and source 2A, making it particularly suited for medium and high capacity power MOSFETs and IGBTs. The integrated bootstrap diode as well as all the integrated features of this driver make the application's PCB design simpler and more compact and help in reducing the overall bill of material.

Features and Benefits

• 3.3V, 5V TTL/CMOS inputs with hysteresis
• 50V/ns in full temperature range for dV/dt immunity
• Adjustable dead time
• Bill of material reduction
• Compact and simplified layout
• Driver current capability: 2A source, 2.5A sink
• Flexible, easy and fast design
• Integrated bootstrap diode
• Single input and shutdown pin
• UVLO on both high-side and low-side sections

Applications

• Clock line drivers
• DC/DC converters
• Motor controls
• Switch mode power supplies
