R12P06S, Recom RxxP06S DC-DC Converter, 6V dc/ 167mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +90°C Max Temp, Преобразователь

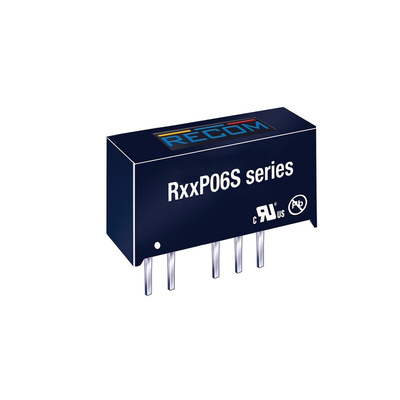

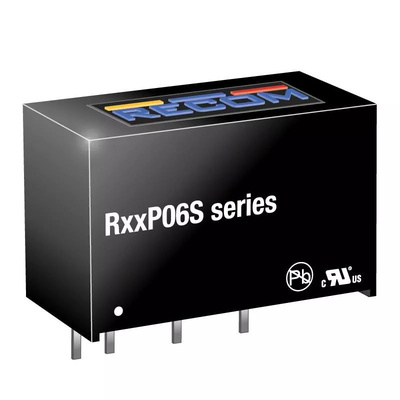

RECOM DC-DC Converter, 6.4kV DC Isolation Voltage, Single Output - R12P Series - R12P06S

To keep your GaN semiconductor devices running full steam ahead, turn to this DC-DC converter from RECOM. It's specifically designed to provide a reliable 6V DC output to GaN transistor-powered drivers found in equipment such as industrial inverters. Thanks to a high isolation voltage of 6.4kV DC, it reduces the risk of short circuits, ground loops and noise interference, which helps to keep your system running reliably. You can use this converter in a broad operating temperature range between -40°C and +90°C without the hassle of cooling it with a fan.

Features & Benefits

• Flame-retardant casing burns for a maximum of just 10 seconds if there's a fire, boosting safety
• Comes in an industry-standard SIP7 format for simple and easy mounting
• Efficiency of 81% means minimal power is lost to heat during conversion
• Light weight of 4.3g puts very little load on a circuit board

Applications

• Backup power supplies
• Solar energy
• Networking systems
• Telecommunication centres

Am I at risk of getting a shock when handling this DC-DC converter?

Thanks to the unit's non-conductive plastic casing, there's very little chance of electric shocks during handling.
