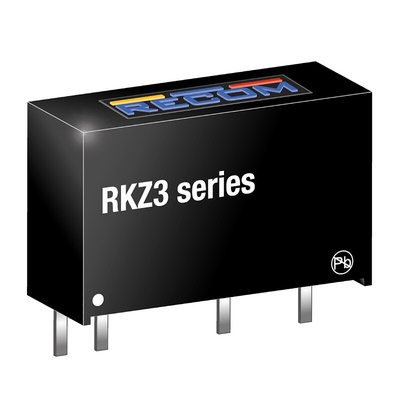

RKZ3-2412S, Recom RKZ3 DC-DC Converter, 12V dc/ 250mA Output, 21.6 → 26.4 V dc Input, 3W, Through Hole, +90°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 3kV DC Isolation Voltage, Through Hole Mounting - RKZ3 Series - RKZ3-2412S

Got a mismatch between your power supply and devices? This DC-DC converter from RECOM bridges the gap. It turns an input voltage range between 21.6 and 26.4V DC into a smooth 12V DC output. As it runs at 90% efficiency, you can be sure only minimal energy is wasted as heat. Thanks to a 3kV DC isolation voltage, this is a sure bet for breaking ground loops or protecting your components from damage caused by electrical glitches.

Features & Benefits

• Low-profile design of 12.2 (D) x 7.5 (W) x 19.6 (L) means it fits in tight setups
• Power-up time of 0.3ms, so it doesn't keep you waiting
• Safe for demanding conditions, thanks to a broad operating temperature between -40°C and +90°C

Applications

• Telecommunications equipment
• Medical devices
• Consumer electronics

How long will this converter last?

As it has a mean time between failures of 17.7 million cycles at +25°C, you can trust it to go the extra mile.

Can I upgrade an existing high-isolation converter?

Yes, the pins for this model are suitable for use with 1W to 3W RK and RKZ converters, so you can step up your power supply in a snap.

Datasheet
