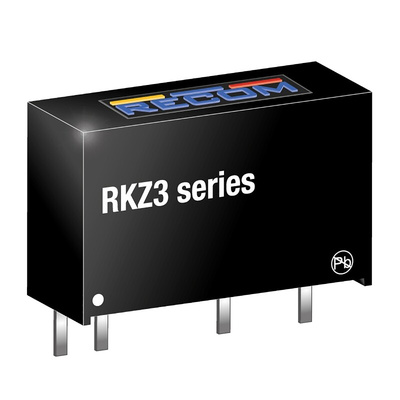

RKZ3-0505S, Recom RKZ3 DC-DC Converter, 5V dc/ 600mA Output, 4.5 → 5.5 V dc Input, 3W, Through Hole, +90°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 3kV DC Isolation Voltage, SIP-7 Package - RKZ3 Series - RKZ3-0505S

Keep a safe distance between two circuits with this DC-DC converter from RECOM. The 5V DC output provides the right power supply for universal industrial automation, computing and process control applications. Thanks to the unit's 3kV DC isolation, you can be sure the input is electrically separated from the output. An efficiency of 85% means it won't waste energy by producing heat while doing its job. The device comes in a SIP-7 package with standard pin layout, making it a cinch to mount on your board when you're upgrading a system or building a new one.

• Wide operating temperature range between -40°C and +90°C to handle harsh conditions
• Compact dimensions of 19.6 (L) x 7.5 (W) x 12.2mm (H) save you space
• Unregulated output makes it suitable for high-speed switching circuits
• Vibration-resistant design allows use in demanding environments

Applications

• Instrumentation devices
• Power supplies
• Lighting circuits
• Motor control
• Audio-visual equipment

Can I be sure this DC-DC converter won't slow down my workflow?

This DC-DC converter has a typical start-up time of 0.3ms, so you can rely on it to keep operations working at speed.
