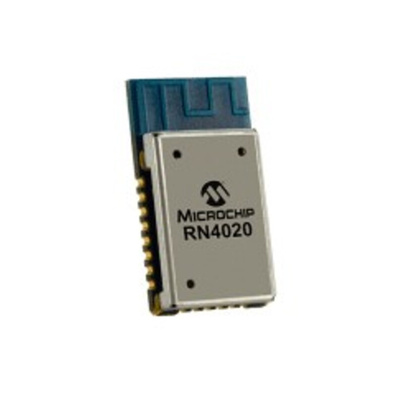

Microchip RN4020-V/RMBEC133 Bluetooth Chip 4.1, Модуль

The RN4020 is a fully-certified, Bluetooth Version 4.1 low energy module for designers who want to easily add low power wireless capability to their products. The small form factor, surface mount module has the complete Bluetooth stack on-board and is controlled via simple ASCII commands over the UART interface. The RN4020 also includes all Bluetooth SIG profiles, as well as MLDP (Microchip Low-energy Data Profile) for custom data. Developers can utilize the scripting feature to enable standalone operation without a host MCU or Processor.

Bluetooth® version 4.1 module
On-board embedded Bluetooth low energy stack
Simple ASCII command interface over UART
Multiple IOs for control and status
Secure AES128 encryption
7 dBm transit power for 100m+ range
Field-upgradeable via the UART interface or over-the-air
Compact form factor 11.5 x 19.5 x 2.5mm
Low power modes
UART interface, GPIO, ADC
64KB internal serial flash
Environmentally friendly

Datasheet
