R-78T3.3-1.0/AL-TRAY, Recom R78T DC-DC Converter, 3.3V dc/ 1A Output, 7 → 42 V dc Input, Screw Mount, Surface Mount, +85°C Max Temp, Преобразователь

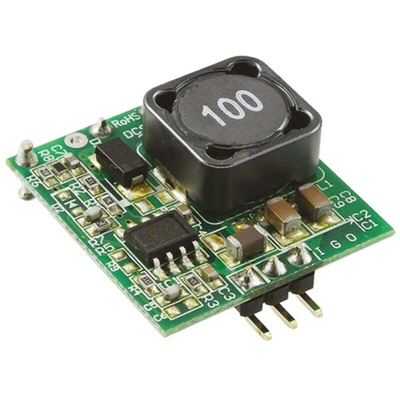

R-78Txx 1.0 Series Single Output DC/DC Converter

The Recom R-78T series of DC-DC converters are compact, low profile SMD switching regulators. They have 3 standard pinning options: AC, AL and FC.
The R-78T series has a high efficiency of up to 95%, which means that these DC-DC converters do not require heatsinks or fans. The switching regulator can operate reliably between -40°C and 85°C without derating. These DC-DC converters are the ideal space-saving solution for portable battery-operated applications.

Efficiency up to 95%
No need for heatsinks
Industry standard Pin-out
1.5A start-up overload capacity
Wide input range 7V-42V
Operating temperature range -40°C to 85°C
Short circuit protection
350kHz fixed switching frequency, shielded magnetics
Low profile
Low cost

1.0 AMP SMD Single Output DC/DC-Converter Data Sheet
