S8FS-G05012CD, Omron S8FS-G Switch Mode DIN Rail Power Supply, 230V ac ac, dc Input, 12V dc dc Output, 4.3A Output, 50W, Блок питания

S8FS-G DIN Rail Switch Mode Power Supply

The S8FS-G series of Switch mode DIN Rail power supplies provide you with excellent standard performance and reliability. They do not require transformers for control circuits plus have in built IEC 61558-2-16 compliant transformers so no need for a transformer with compound windings. The S8FS0G power supplies are excellent with machine tools and semi-conductor equipment plus reduce costs and space. The power supplies include a wealth of features including operating within harsh vibration environments, high temperatures, unstable input voltage and altitudes up to 3000 m.

Part Number S8FS-G05012CD

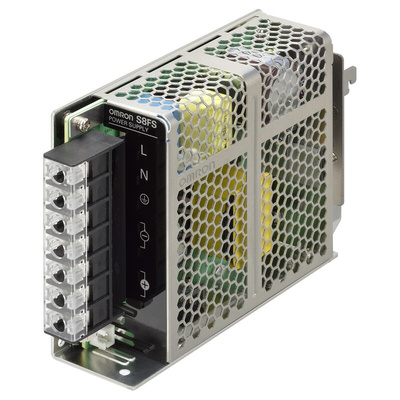

The S8FS Switch mode, mounted Din Rail mounted power supply is a covered type, screw terminal power supply. S8FS-G05012CD has a power rating of 50 W and an output voltage of 12 V dc plus a rated input voltage of 100 V ac to 240 V ac. This model is natural air cooling.

Features and Benefits.

•Covered type power supply
•Screw terminal
•Built-in transformer
•Design stops screws from falling out of the terminal block
•Front cover
•Resistant to harsh environments
•DIN Rail Mounted
•Green output indicators
•Natural air cooling
•Power rating 50 W
•Output voltage 12 V dc
•Input voltage 100 V ac to 240 V ac
•Rated output current 4.3 A
•Harmonic current emissions
•Efficiency 84% min.
•Overload and over voltage protection
•Space saving
•Weight 300g
•10 Year life expectancy

Safety and Storage.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.
Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Datasheet

S8FS-G Datasheet
