W28 series thermal cut-outs
Flush-mount circuit breaker models to protect apparatus.
Valued for their thermal protection of small electronic assemblies.
Front panel mount.
Fuse holder type.
Resettable.
Approvals
UL 1077, E 69543, CSA,
LR 15734, CS 2190N
TE Connectivity Thermal Magnetic Circuit Breakers

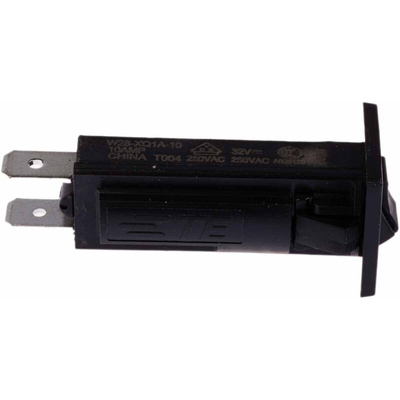

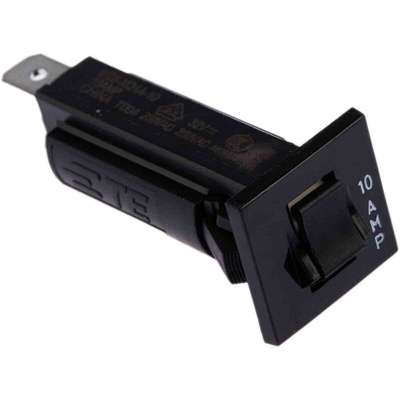

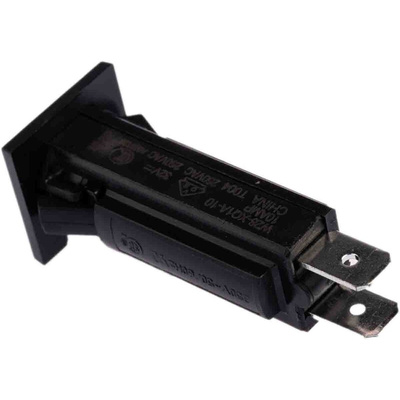

The TE connectivity W28 series thermal circuit breaker is a snap-in 1-pole flush-mounted breaker model. This circuit breaker has an electrical rating of 250VAC and 10A. This breaker is compact in size and has a thermal tripping mechanism. All the CBEs have blade terminals and have an insulation resistance greater than 100Mohm.
Features and Benefits
• 1000A breaking capacity

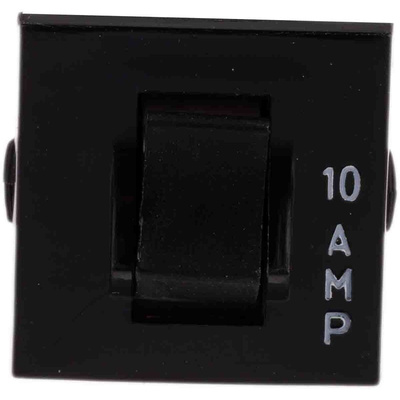

• Button extends for visual trip indication
• Labour-saving snap-in mounting
• Panel mount type
• Push to reset
• Replaces slow blow glass cartridge fuse
Applications
• Household equipment
• Industrial applications
• Power tools
• Uninterruptible power supply and chargers
Certifications
• CS 2190N
• E69543
• LR 15734
• UL 1077
• VDE approved
• CSA certified
Thermal Magnetic Convertible
All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
Техническая спецификацияCCC Certificate No 2004010307135992
Datasheet
