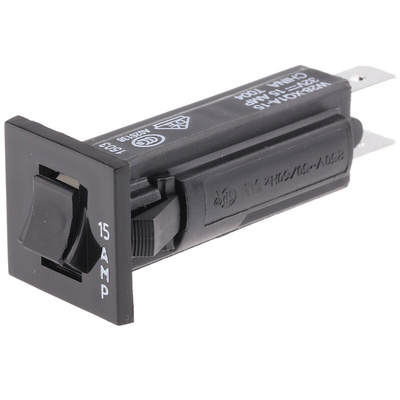

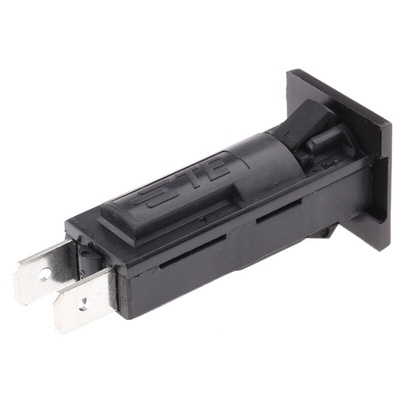

W28-XQ1A-15, TE Connectivity Thermal Circuit Breaker - W28 SP Pole 32 V dc, 250 V ac Voltage Rating Panel Mount, 15A Current Rating, Автоматический выключатель

W28 series thermal cut-outs

Flush-mount circuit breaker models to protect apparatus.
Valued for their thermal protection of small electronic assemblies.
Front panel mount.
Fuse holder type.
Resettable.

Approvals

UL 1077, E 69543, CSA,
LR 15734, CS 2190N

TE Connectivity RCBO

The TE Connectivity RCBO's is a range of products with an electric rating of 250VAC, 32VDC, and 18A. It is a thermal-magnetic convertible. All CBEs have blade terminals and have an insulation resistance greater than 100Mohm. Suitable for most residential, commercial, and light industrial.

Features and Benefits

• Button extends for visual trip indication
• Flush mount circuit breaker models to protect apparatus
• Front panel mount and Fuse holder type
• Labour saving snap in mounting
• Push to reset
• Replaces slow blow glass cartridge fuse
• Resettable
• Valued for their thermal protection of small electronic assemblies

Certifications

• VDE not available on 16A and 20A W28 only
• UL 1077 listed
• E 69543
• CSA
• LR 15734
• CS 2190N

Thermal Magnetic Convertible

All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).

CCC Certificate No 2004010307135992
