7010.9830.63, SchurterSMD Non Resettable Fuse 2A, 125V ac/dc, Предохранитель

Schurter Quick Acting Miniature Fuses

Schurter quick acting high breaking capacity miniature fuses that can be directly soldered to printed circuit boards. Particularly suited to applications such as telecoms, industrial electronics and household appliances.

Fuses with a high breaking capacity
The SMD base is mounted on PCBs by IR reflow or vapour phase

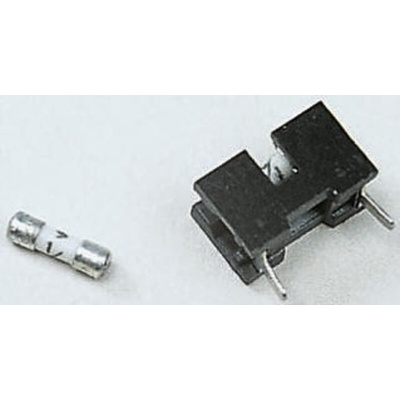

The ’pin-type’ mounting socket is wave soldered
Ceramic body, brass; tin-plated cap

Approvals

UL; CSA

Schurter Surface Mount Fuse

The Schurter surface mount quick acting fuse has a thermoplastic housing and the terminal from tin plated copper alloy. It is wave soldered on PCB with pin type mounting socket. Performance characteristics of the UMT SMD fuse are suitable for several for low voltage applications. The FF type is ideal for protection of high value silicon ICs. Its time lag characteristic protects electronic systems from over current and short circuit. The fuse has an electrical rating of 125VDC/125VAC and 2A.

Features and Benefits

• Service temperature ranges between -55°C and 125°C
• High Breaking capacity is 300A
• Compact in size

Applications

• Medical equipment
• Power supplies
• Industrial electronics

Certifications

• CSA C22.2 no. 248.14 certified
• IEC 60127-4/2 certified
• UL 248-14 approved

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.

FUSIBLE MINIATURE

UL E41599

CSA 34549
