0031.8211, Schurter 10A PCB Mount Fuse Holder for 5 x 20mm Fuse, 250V ac, Держатель предохранителя

Fuse-holders

Schurter fuse holders are ideal for use in both industrial and household applications where the product will be unattended for periods of time. Used in conjunction with Schurter fuses they offer first rate protection. Schurter fuse holders are subjected to glow wire testing to ensure that they are safe to withstand high temperatures.

5 x 20 mm. sets of fuse-holders.
Suitable for mounting on PCBs.
Covers available separately.

Standards

ASE, VDE, SEMKO, UL, CSA

Schurter Fuse Holder

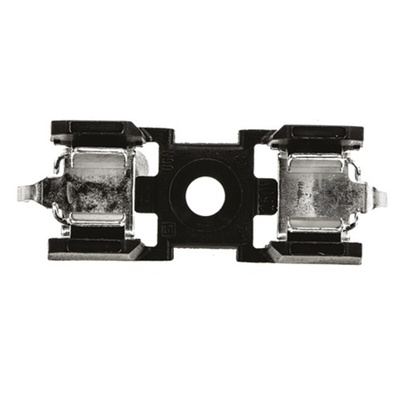

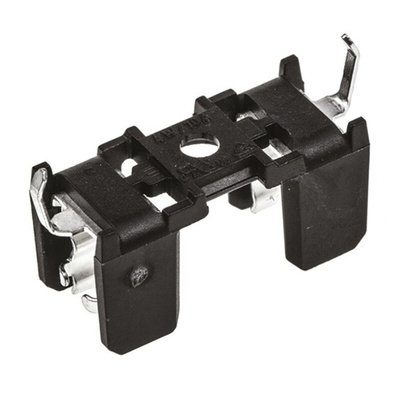

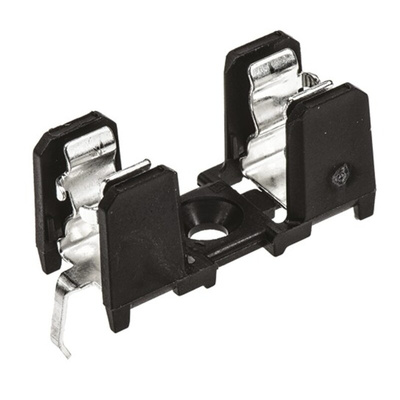

The Schurter horizontal through-hole mount with a separate slotted cap fuse holder has an electrical rating of 250VAC and 10A supply voltage. It provides the installation hardware for a fuse and preventing accidental misuses in the circuit. It includes a 5x20mm cartridge type. The fuse carrier and knob are spring-loaded bayonet type with screwdriver slot. It has a low profile fuse block with insulation walls. It uses a glow wire test method to ensure a sufficient level of high -temperature safety is met.

Features and Benefits

• Fuse carriers are easily replaceable
• Operating temperature ranges between -40°C and 85°C
• Screwdriver soldering
• Shock safety
• Thermoset is used as a body material

Applications

• Household appliance
• Industrial equipment

Certifications

• CSA C22.2 no. 39
• IEC 60127-6
• IP00/20 rating
• UL 4248-1 / UL 512
• UL File Number: E39328 listed
• VDE Certificate Number: 40001042

All fuses have Thermoplaste Polyamide bodies
