1181-6.3, 3M 1181 Conductive Metallic Tape, 6.4mm x 16m, Медная лента

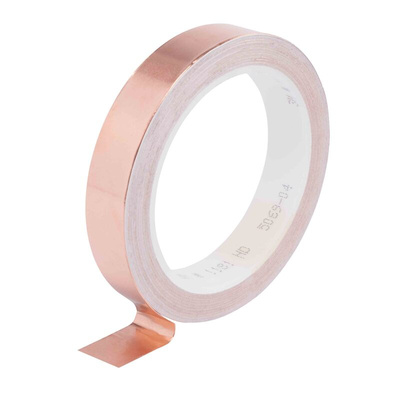

3M Conductive Metallic Tape, 6.4mm (W) x 16m (L) - 1181 Series - 1181-6.3

This smooth copper tape from 3M protects delicate components through electromagnetic or radio-electrical shielding. The unique electrically conductive pressure-sensitive acrylic adhesive has a dead-soft copper backing. It can be soldered, and the removable strip makes it easy to handle and die-cut. Tensile strength of 44N/cm means you can rely on this tape for long-term durability. Unlike non-conductive copper tape, which is conductive on one side only, this conductive copper tape is conductive on both sides. This allows you to make quick electrical connections by simply taping multiple lengths to one another.

• Adhesion strength of 3.8N/cm keeps it firmly in place• Operating temperature range of- 20°C to +155°C makes it suitable for a wide range of industrial environments• High resistance to solvents, UV rays, humidity and mould for longer-lasting performance

Applications

• Electromagnetic or radio-electrical shielding• Shielded rooms• Grounding and EMI (electromagnetic interference) shielding in equipment

What's electromagnetic shielding?

• Designed for electromagnetic or radio-electrical shielding
• Suitable for soldering
• Grounding and EMI shielding in equipment
• Components
• Shielded rooms

Electromagnetic shielding is the use of conductive materials to block electromagnetic fields from entering a space. Copper tape can be used to provide electromagnetic shielding for delicate components to prevent them from being damaged.

Why choose 3M?

3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.

3M Tape Selector

Need advice on choosing the right Tape? Use our Product Selector to help you make the right choice!

1181 Tape Copper Foil with Conductive Adhesive Data Sheet
