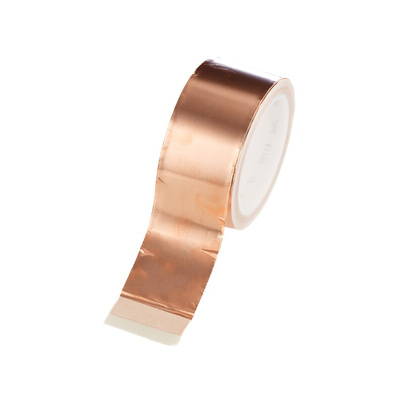

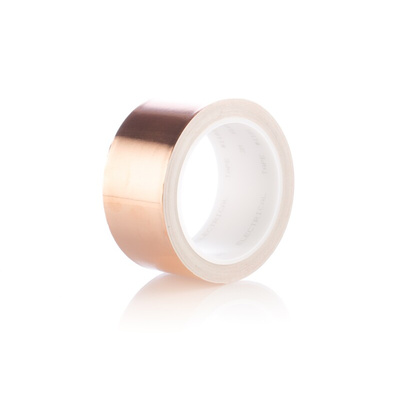

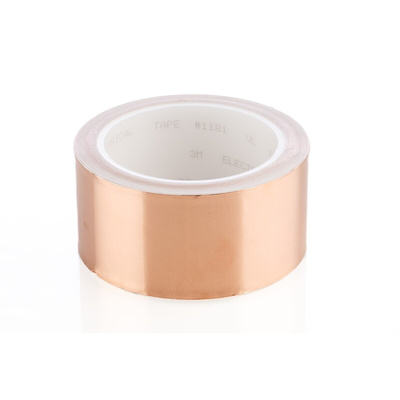

1181-50.8, 3M 1181 Conductive Copper Tape, 50.8mm x 16m, Медная лента

3M Conductive Copper Tape, 50.8mm (W) x 16m (L) - 1181 Series - 1181-50.8

Looking for an efficient solution for electromagnetic or radio-electrical shielding? Choose this dead-soft copper tape from 3M, which features a unique electrically conductive pressure-sensitive acrylic adhesive. Its high resistance to humidity, mould, UV rays and solvents makes it a robust and durable choice. An operating temperature range of -30°C to +130°C means you can use it in extreme industrial environments. For easy handling and die-cutting, it comes supplied on a removable liner.

• Suitable for applications that need excellent electrical conductivity from the substrate through the adhesive to the foil backing• Can be soldered to help you make secure connections• Tensile strength of 44N/cm helps it stand up to mechanical stress• Conductive on both sides so electrical connections can be made by taping multiple lengths together

Applications

• Grounding and EMI (electromagnetic interference) shielding in equipment• Shielded rooms• Manufacturing

Why would I need electromagnetic shielding?

• Designed for electromagnetic or radio-electrical shielding
• Suitable for soldering
• Grounding and EMI shielding in equipment
• Components
• Shielded room

Electromagnetic shielding can be used to prevent delicate components from being damaged. It involves using conductive materials to block electromagnetic fields from entering a space.

Certifications

3M are a trusted name in tapes and adhesives solutions. From industrial and electronic applications to meeting domestic requirements, 3M supply high quality and reliable tapes and adhesives. RS partners with 3M to deliver an extensive and inclusive range of excellent 3M products, with the fantastic and convenient consumer service.

Similar 3M Tapes within this Range

• 110-8054 is a 3M 1181 Conductive Copper Tape, 12.7mm x 16m
• 167-9376 is a 3M 1181 Conductive Copper Tape, 50.8mm x 16m
• 842-0360 is a 3M 1182 Conductive Tin Clad Copper Tape, 19.1mm x 16m
• 842-0409 is a 3M 1183 Conductive Tin Clad Copper Tape, 19.1mm x 16m
• 842-0364 is a 3M 1194 Non-Conductive Tin Clad Metallic Tape, 19.1mm x 33m
• 842-0370 is a 3M 1267 Conductive Metallic Tape, 25.4mm x 16m
• 842-0367 is a 3M 1345 Conductive Tin Clad Metallic Tape, 19.1mm x 16m

Why choose 3M?

3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.

3M Product Tape Selector

Need advice on choosing the right Tape? Use our Product Selector to help you make the right choice!

1181 Tape Copper Foil with Conductive Adhesive Data Sheet
