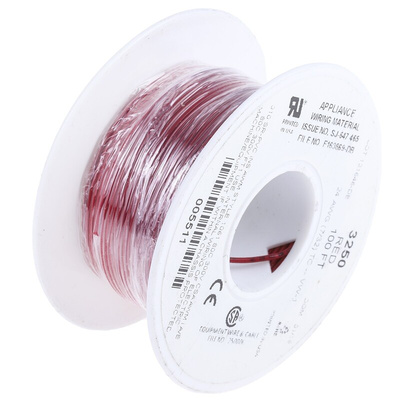

3250 RD005, Alpha Wire Premium Series Red 0.2 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 30m, SR-PVC Insulation

Belden Alpha Wire Hook Up Wire, Tinned Copper Conductor, 300V Voltage Rating - Premium Series - 3250 RD005

Need a trusty messenger to carry signals to your electronic components? Count on this 24AWG hook up wire from Belden's Alpha Wire range. Both ends are unterminated, so you can easily link the single core, which is made up of seven strands, to connectors that match your setup's needs. The cable comes with semi-rigid PVC insulation to keep you safe from electric shocks and protect the wire from abrasion. Its tinned copper conductor material offers high conductivity for seamless transmissions.

Features & Benefits

• 30m length can be used in a single run or cut to size
• Bend radius of 10 times its outer diameter of 1.15mm for flexible installation
• Red sheath for quick identification

Applications

• Communications networks
• Packaging plants
• Consumer electronics

What temperature range can this hook up wire handle?

It does its job reliably in temperatures from -10°C to +80°C, so it's fit for use in demanding conditions.
