2414C SL005, Alpha Wire Alpha Essentials Control Cable, 4 Cores, 0.56 mm², Screened, 30m, Grey PVC Sheath, 20 AWG, Кабель

Belden Alpha Wire Control Cable, 33.46Ω/km Conductor Resistance, 5.41mm OD - Alpha Essentials Series - 2414C SL005

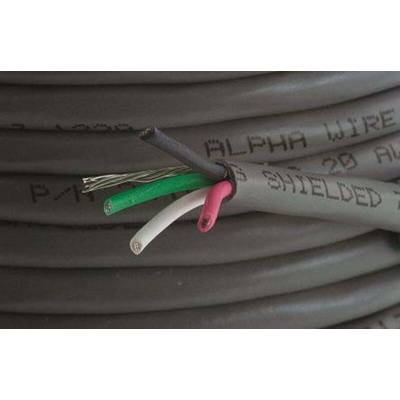

When you want to support clear communication between applications, this control cable from Belden Alpha Wire gets the job done. It's a versatile 300V-rated option that transmits electricity and data. Four highly conductive, tinned-copper cores reliably zip signals from one point to the next, while an aluminium-mylar foil shield prevents electric noise and static, so you get crystal-clear transfers. As the cable is 30m long, reaching equipment across large facilities is hassle-free.

Features & Benefits

• Slim outer diameter of 5.41mm minimises bulk
• Bend radius of 10 times its outer diameter makes it flexible and easy to handle
• Performs hiccup-free in temperatures between -20°C and +75°C

Applications

• Broadcasting studios
• Computer peripherals
• Automated instruments
• Banking machines

Is the sheath of this control cable durable?

Yes, it's a rugged PVC jacket that resists chemicals and abrasion, so handles the demands of heavy-duty industrial setups.
