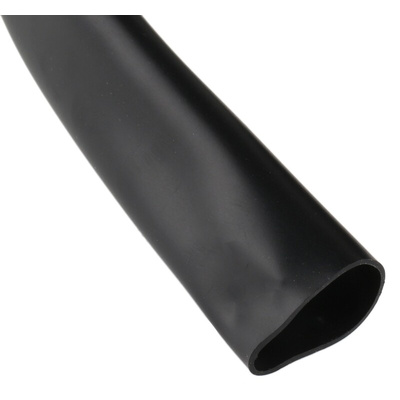

PVC-105-3/4 BK007, Alpha Wire PVC Black Cable Sleeve, 19.05mm Diameter, 15m Length, Кабельная муфта

Belden Alpha Wire Cable Sleeve, -20°C to +105°C Operating Temperature Range, 0.89mm Wall Thickness - P1053/4 BK007

Keep your cables organised in demanding environments with this tough and flexible cable sleeve from Belden Alpha Wire. It's made from PVC material that combines electrical and thermal insulation with mechanical strength. The 0.89mm-thick walls keep your conductors well protected from the surrounding environment. This product can withstand an electric field of 34.3kV without breaking down or permitting electrical arcing or conduction, so it's got safety covered.

Features & Benefits

• Wide operating temperature range of -20°C to +105°C makes it suitable for use in harsh environments
• Cable diameter range of 19.05 to 19.96mm allows you to bundle multiple wires
• 15m length can be used as a single run or cut to size

Applications

• Data centres
• Telecommunications networks
• Transportation industry

Can I use this cable sleeve in a contaminated setting?

Yes – PVC is a hardy material that shrugs off damage from chemicals and fats, as well as acids and alkalis.

PVC-105-3/4 Datasheet
