2904600, Phoenix Contact QUINT4-PS/1AC/24DC/5 Switch Mode DIN Rail Power Supply, 230V ac ac, dc Input, 24V dc dc Output, 5A, Блок питания

Phoenix Contact Quint 4 Power Supply Units

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The DIN Rail mountable PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• IP20 protection
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

Typical Applications

Quint PSUs can be used in control cabinets within the automotive industry or process technology to ensure uninterrupted production. Can be used in environments where there is corrosive gas, dust and 100% humidity due to its conformal coating.

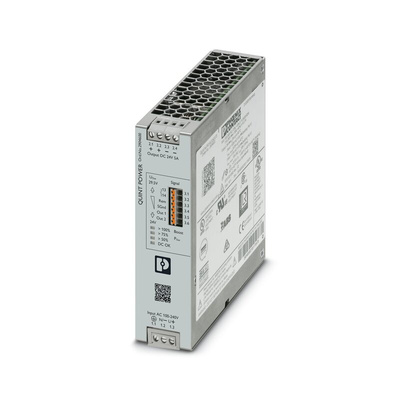

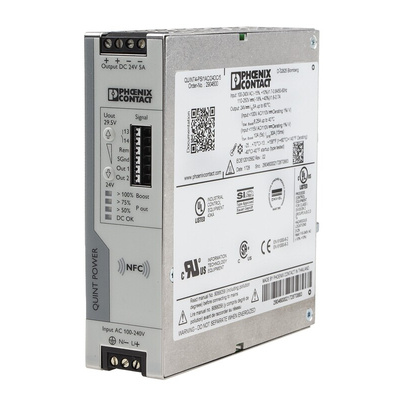

Phoenix Contact Switch Mode DIN Rail Power Supply, 120W Power Rating - QUINT4-PS/1AC/24DC/5 - 2904600

For safe and reliable power delivery to components on DIN rails in your industrial systems, choose this power supply unit (PSU) from Phoenix Contact. It takes AC (alternating current) supply and converts it to DC (direct current) voltage, then steps it down to the voltage needed by the attached equipment. It can either be connected in parallel or in series to conveniently suit your design specifications. To prevent power loss, its SFB (selective fuse breaking) technology allows for individual circuit protection when a current abnormality occurs.
This PSU has compact dimensions of 36 (width), 130 (height) and 125mm (depth) that allow it to fit easily into tight spaces. It's also lightweight at 700g, so it's easy to handle and won't put unnecessary strain on your setup. You'll find components like this one useful for powering devices like solenoid valves and relays.

• Efficiency of 89.2% for reliable performance
• Preventive function monitoring shows critical operating conditions before errors occur for quick troubleshooting
• Metal housing for durability and corrosion resistance
