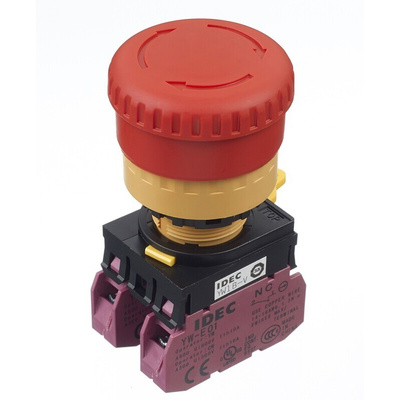

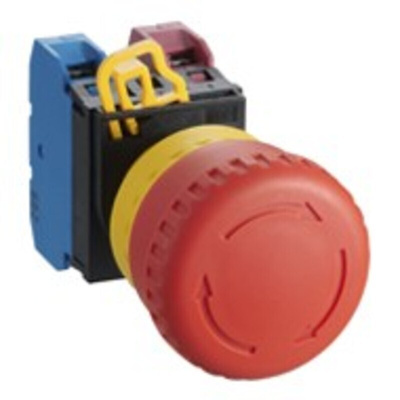

YW1B-V4E02R, Idec YW Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC, IP65

Idec Emergency Stop Pushbutton

The Idec YW series emergency stop pushbutton has a red mushroom style head with the diameter of 40mm. Its housing is made from the plastic(bezel) material. This pushbutton has an electrical contact current rating of 10A and a voltage rating of 380V.

Features and Benefits

2NC contact configuration
Pull to turn reset method
Panel mount
Panel cut-out diameter is 22mm

Compact and lightweight
Finger-safe screw terminals
2 safety contacts
Non-illuminated
Separate contact blocks make installation and removal easy.
Pilot lights feature a large lens for a wide viewing angle
Direct opening action

Certifications

IP65 rated
CE certified
UL approved
CCC certified
