4312NHH, ebm-papst, 12 V dc, DC Axial Fan, 119 x 119 x 32mm, 8.3W, Вентилятор

ebm-papst High Performance Ball Bearing Fans

ebm-papst high performance ball bearing fans are an ideal soultion to a wide range of applications, featuring fibreglass-reinforced plastic and completely integrated electronic commutation.

• Material: fibreglass-reinforced plastic
• Fully integrated electronic commutation
• Protected against reverse polarity and locking

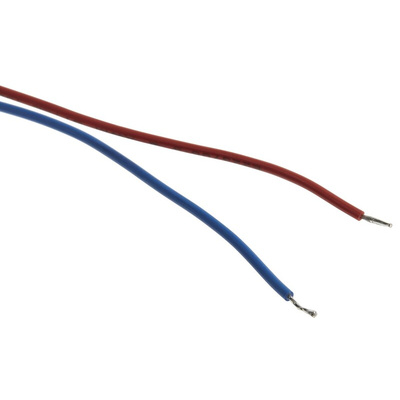

• Connected via single strands AWG 24, TR 64. Bared and tin-plated.

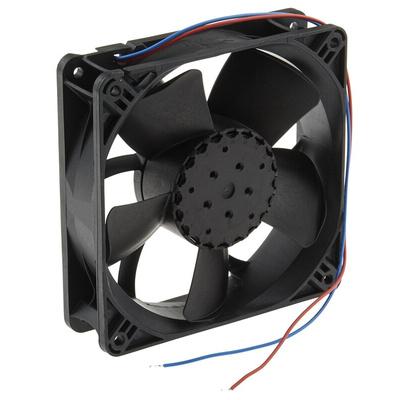

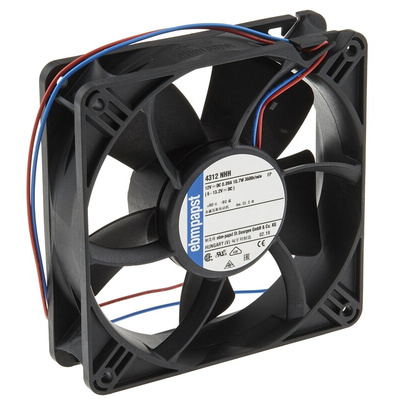

ebm-papst 4300N Series Axial Fan

The ebm-papst 4300N series is a square-shaped DC axial fan. Its housing and impeller are made of fibreglass-reinforced plastic with ball bearing system. It provides protection against blocked rotor and reverse polarity. This fan has speed limit alarm, PWM and analogue control unit. It has external and internal temperature sensors. The fan has an electrical rating of 12VDC, 160mA and 8.3W with a speed of 3500rpm.

Features and Benefits

• Auto restart capability
• Low noise level
• Moisture protection
• Operating temperature ranges between -20°C and 75°C

Applications

• Air conditioner
• Heating and ventilation
• Industrial electronics
• Refrigeration

Certifications

• CCC
• CE certified
• CSA certified
• EAC approved
• UL approved
• VDE approved

4300N Series Technical Data
