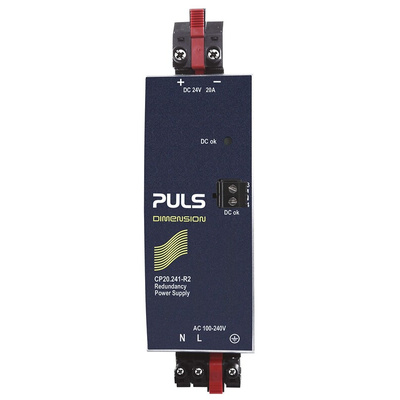

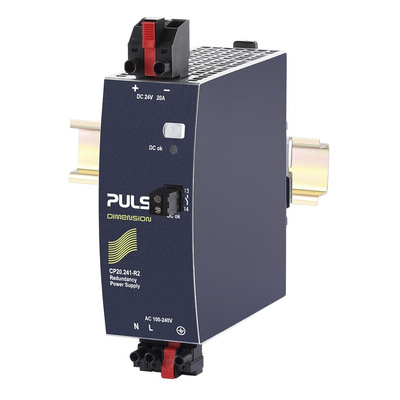

PULS Redundant DIN Rail Power Supply

The PULS Dimensions CP-series single output DIN-rail redundant power supply has an output current rating of 20A at 24VDC. It has a single-phase input voltage ranging between 100VAC and 240VAC/ 110VDC and 150VDC with integrated decoupling function. These units include a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems without the need for external redundancy modules. These are cost optimised power supplies specifically designed with uncompromised quality and reliability for high-performance. The most outstanding features of these units are of small size and high-efficiency. The power supplies can deliver three times the nominal output current for 12ms that helps to trip fuses on faulty output branches. High immunity makes it suitable for almost every situation.

Features and Benefits

20% output power reserves
Active power factor correction (PFC)
Efficiency up to 95.2%
Excellent partial load efficiency
Minimal inrush current surge
Operation temperature ranging between -40°C and 70°C
Power rating is 480W
Ripple factor and noise is 50mV
Safe HiccupPLUS overload mode

Applications

Communication and instrumentation equipment
Industrial control
Office

Certifications

ATEX certified
CE certified
cSAus listed
cULus listed
GL
IECEE
IECEX certified
