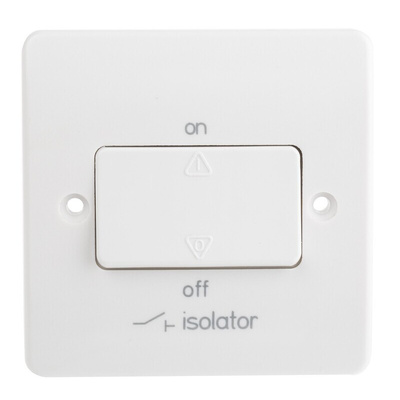

MK Electric Logic Plus White Moulded Triple Pole Fan Isolator Switch
The MK Electric Logic Plus white moulded triple pole fan isolator switch, with 10A Switchlock and Padlock, provides a simple and safe method of isolating mechanical fan units. It is used when there is little or no natural light available.
Features and Benefits:
• Stored energy is the method of operation
• Suitable for ionisation
• AC23B utilisation category
• Electric rating of 250VAC and 10A at 50Hz

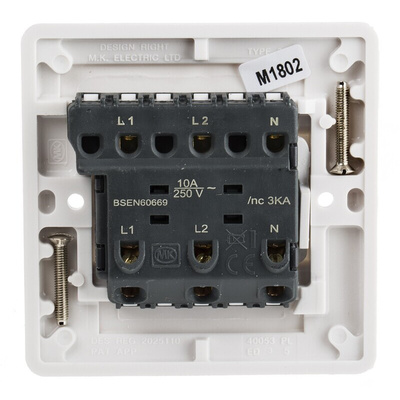

• The switch has a terminal capacity of 4 x 1mm², 4 x 1.5mm², 3 x 2.5mm², 2 x 4mm² and 1 x 6mm²
• The nominal contact gap is 3mm
• 100A rms rated making capacity
• 80A rms rated breaking capacity
• 6000A rms rated conditional short-circuit current
• (with supply side protective device GEC NIT 16 BS88: part 2: 1988 16A 550VAC utilisation category gG 80KA breaking capacity fuse links)
• Operating temperature range between -5°C to +40°C
• 2000m maximum installation altitude
• Number of poles 3
•Termination type screw
Applications:
• Bathrooms
• Storerooms
• Basements
Certifications:
• IP4X rated
