K961BSS, MK Electric 13A, 2 Gang Switched Fused Spurs, Выключатель

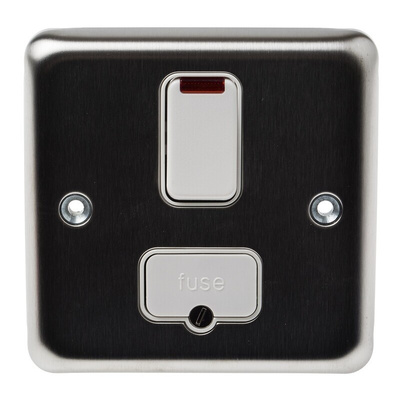

MK Electric Fused Spur

The MK electric 2 gang surface mount fused spur has a current rating of 13A and 2-pole. The length and width of the fused spur is 86mm. It is designed for the connection of refrigerators, water heaters, central heating boilers, and other fixed appliances.

Features and Benefits

• Additional electrical safety from neutral ’make first', ’break last' feature
• Additional security (tamper proof version
• All brass products are chemically treated

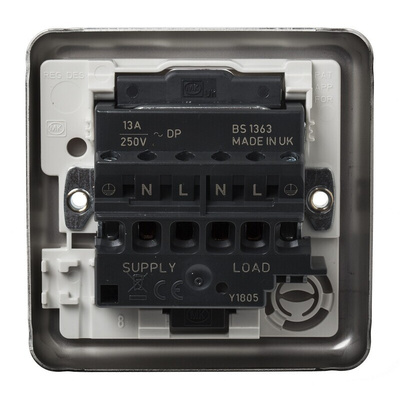

• All supply and load cables can be cut and stripped to the same length
• All terminal and fixing screws operated by one size (4mm) screw driver
• Angled, top mounted terminal screws simplify wiring
• Backed out and captive terminal screws
• Captive fuse carrier
• Fuse carrier lockable in open position
• Hard wearing lacquer finish
• Integrally wired indicators save installation time
• Lacquered to minimise corrosion
• Moulded ’on' indicator flash on switches cannot rub off hence, it's totally safe
• Optional indicators in the switch rockers with 175° visibility in the horizontal and vertical planes
• Push fit cord grips, for safer, quicker installation
• Secure cable and flexible cord connection
• Worm drive operated fuse carriers for
0

Applications

• Refrigerators
• Water heaters
• Boilers

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
