RF Solutions ESP-32 WiFi Module, Модуль

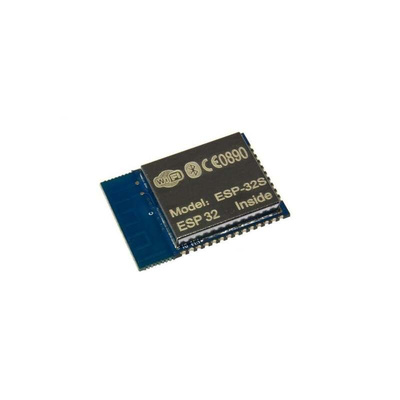

ESP-32 2.4 GhZ Wi-Fi & Bluetooth Module

The ESP-32 is a powerful generic RF module with features such as WiFi and Bluetooth. The dual WiFi and Bluetooth combination allows this module to target plenty of applications. Incorporated into this module is a two core CPU that can be controlled along with a clock oscillator that can be configured between 80MHz and 240MHz. The ESP-32 also contains a low power mode with multiple modes for brilliant efficiency.

This small chip really packs a punch with all its features and applications. It is a multi-purpose and feature packed controller that can really accelerate your project.

Features and Benefits:

•2.4GhZ range provides great distance and range
•Controllable CPU & clock oscillator
•Multi-functional chip; WiFi & Bluetooth
•Supports: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
•Supports a data range of up to 150Mbps
•WiFi security: WPA,WPA2,WPA2-Enterprise-WPS
•Operating voltage – 2.7/3.6V depending on the load
•-40°C - +85°C operating temperatures
•Built in peripherals: ADC & DAC features, touch sensor, SD/SDIO/MMC host controller, I2C & I2S interface’s, SPI interface, infrared controller and hardware accelerator

The ESP-32 is great for a mass of application such as:

•Video Encoding
•Music streaming
•MP3 Decoding
•Low power network
•Other high demanding tasks
•Battery powered devices
•Wearable technology

How do I program the ESP-32?
MicroPython is a great beginning firmware to start with. MicroPython is a Python based firmware but will allow you to configure your ESP-32 chip with your SBC’s or your own projects. There are also plenty of SDK’s available to help.

Datasheet
