LR4-202LJBU-RG, Patlite LR4 Series Coloured Buzzer Signal Tower, 2 Lights, 24 V dc, Pole Mount, Сигнальная колонна

Patlite Single Tower Light

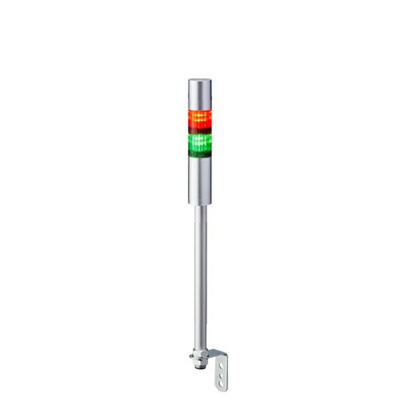

The Patlite single tower light is LR LED preconfigured beacon single tower light featuring a modular design. It has a supply voltage of 24VDC. This tower light has red and green LEDs and is base mount. It has a sleek, smooth form factor and enhanced body construction for high performance in harsh environments. It is available in silver body colour.

Features and Benefits

• Modular "twist and lock" system to easily customize and reconfigure LED and sound modules
• No flashing/buzzer

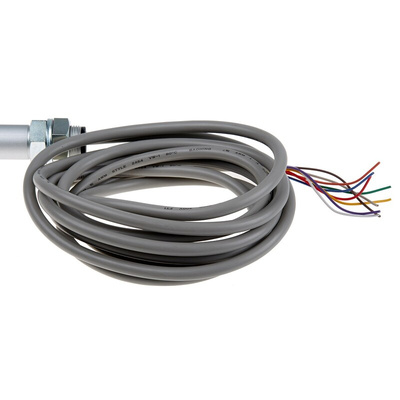

• Pole mount with linear bracket/cable
• Redesigned lens and improved module construction delivering bright, even light for visibility from further distances (2000mcd output)
• Reengineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omnidirectional sound
• Service temperature ranges between -20°C and 50°C
• Φ40 size

Certifications

• CSA-C22.2 No.14
• EMC Directive (EN61000-6-4, EN61000-6-2)
• FCC Part 15 Subpart B Class A
• IP65
• KC (KN 61000-6-4, KN 61000-6-2)*3
• Low-voltage Directive (IEC /EN60947-5-1, EN62471)
• UL 508

Datasheet

Patlite Beacons Catalogue
