61-6441.4067, EAO 61 Compact Series Twist Release Emergency Stop Push Button, Panel Mount, 16mm Cutout, 3 NC, IP67, IP69K

EAO Series 61 Low Depth IP67 and IP69K Sealed Emergency Stop Switches

New 16mm mounted 27mm / 40mm diameter head ’foolproof’ Emergency Stop with IP69K protection. Short back panel depth of 21.2mm and low front panel height of 27.5mm with optional dot illumination and up to 3 contacts.

• Emergency stop with red release arrow markings
• Precise foolproof trigger action
• IP69K Sealed product
• Illuminated and non illuminated versions
• 27mm and 40mm Mushroom head
• Compact size 16mm mounting
• Reliable mono-block single piece contruction
• Gold contacts, maximum voltage 50V
• UL listed meet newstandard EN ISO 13850

Electrical Characteristics

• Complies with latest emergency-stop switches standards comply EN IEC 60947-5-1, EN IEC 60947-5-5 (Emergency-stop), EN ISO13850

Environmental Conditions

• Operating temperature -25°C to+55°C
• Storage temperature -40°C to +80°C
• Sealed at the front to IP67 and to IP69K covering submersion and resitance to jetwash

Approvals

Approvals : CE, EN 60947-1, EN 60947-5-5 and EN ISO13850

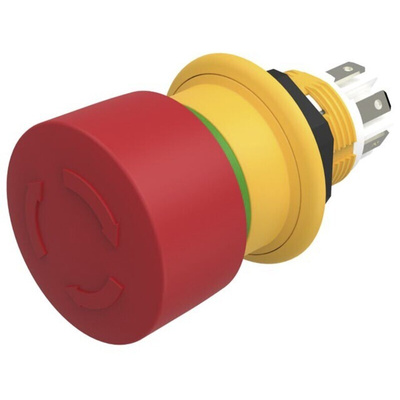

EAO Red Emergency Stop Push Button, 16mm Cutout, 3NC Contacts - 61 Series - 61-6441.4067

Install this emergency stop push button from EAO to safeguard your equipment against damage and prevent injury to personnel. The unit features foolproof trigger action, meaning activation is precise when the button is pressed, so you can quickly cut off power to a machine in the event of an emergency. To reset it, simply twist the button in the clockwise direction indicated by the textured arrows. The bright red push button is combined with a yellow base, making it easy to quickly identify in hazardous situations.

Features & Benefits

• Compact mounting cutout of 16mm means it takes up minimal space on a panel
• Wide operating temperature range of -25°C to +55°C for use in demanding environments
• Solder termination method for a secure, air-tight connection

Applications

• Industrial machinery
• Gate guards and warehouse doors
• Construction industry
• Lifts

Can I use this emergency stop push button in harsh environments?

Yes, this emergency stop push button has ingress protection ratings of IP67 and IP69K. This means it's completely protected against dust and submersion in 1 metre of water for up to 30 minutes and can withstand high-pressure, high-temperature water jets. This makes it suitable for use in harsh environments and situations where frequent washdowns are necessary.
