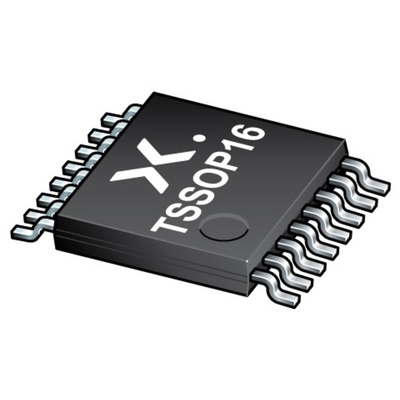

Nexperia 74HC238PW,118, Decoder, 16-Pin TSSOP, Декодер-демультиплексор

1705537
Номер производителя: 74HC238PW,118Производитель: Nexperia
Цена за шт. (норма упаковки 25 шт)
186.00 руб. (С НДС) *
Количество 25+ 125+ 250+ 750+ 1500+
Цена 186.00 руб. 117.00 руб. 111.00 руб. 105.00 руб. 90.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The 74HC238: 74HCT238 decodes three binary weighted address inputs (A0, A1 and A2) to eight mutually exclusive outputs (Y0 to Y7). The device features three enable inputs (E1 and E2 and E3). Every output will be LOW unless E1 and E2 are LOW and E3 is HIGH. This multiple enable function allows easy parallel expansion to a 1-of-32 (5 to 32 lines) decoder with just four '238 ICs and one inverter. The '238 can be used as an eight output demultiplexer by using one of the active LOW enable inputs as the data input and the remaining enable inputs as strobes.

Multiple input enable for easy expansion or independent controls
Integrated input latch to store the address of decoder lines
Ideal for memory chip select decoding
Asynchronous and synchronous load options
Overvoltage tolerant input options
Inverting and non-inverting output options
3-stage outputs
High frequency

Техническая спецификация
pdfDatasheet
pdfESD Control Selection Guide V1
Количество контактов:
16
Напряжение питания - максимальное:
6 В
Напряжение питания - минимальное:
2 В
Рабочая температура - максимальная:
+125 °C
Рабочая температура - минимальная:
-40 °C
Размеры:
5.1 x 4.5 x 0.95мм
Тип монтажа:
Поверхностное крепление
Тип упаковки:
TSSOP
