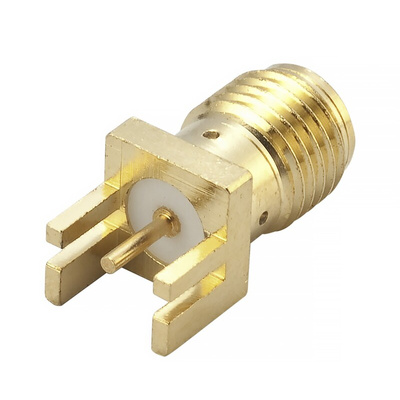

RS PRO Female, Male Edge Mount SMA Connector, 50Ω, Solder Termination, Straight Body, Разъем

RS PRO 50 Ω Straight Edge Mounting, SMA Connector, Female, Male

This RS PRO female-to-male SMA (SubMiniature version A) connector attaches two coaxial cables together while shielding them from electrical interference. It allows for an even transfer of both voltage and power thanks to its 50 ohm (Ω) impedance level.
The gold-plated beryllium copper contact material resists rust and corrosion, ensuring a long-lasting and reliable connection in harsh environments. As it has a broad operating temperature range of -65°C to +165°C, it can withstand the sharp rises or falls in temperature associated with electrical currents.
The connector is commonly applied to a printed circuit board (PCB) for radio frequency devices such as those used in laboratories, test and measurement devices or communications applications. It can also be used to connect global positioning systems (GPS), local area networks (LAN) and antennas.

Features and Benefits

• Straight body orientation
• Gold body plating
• No bulkhead
• SMA (SubMiniature version A) coaxial connector type
• Beryllium copper contact material
• Gold contact plating
• Female, male gender
• Impedance of 50 Ω
• Threaded mating type
• Maximum operating temperature of +165°C
• Minimum operating temperature of -65°C
• Edge mounting type
• Operating frequency of 26.5 GHz
• Normal polarity
• Standard size
• Solder termination method
• Voltage rating of 500 V
