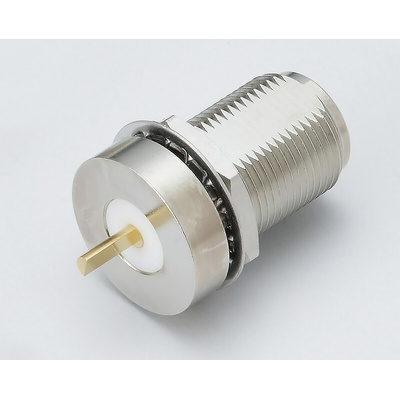

RS Pro Bulkhead Fitting N Type Connector
The RS Pro straight bulkhead fitting N-type, female, male connector has an N-jack receptacle connector. It will be horizontal to the PC board after soldering on it because of its panel mount type. This connector has the bulkhead function, the applied panel thickness is 0.280in. The low PIM connector series is ideal where PIM (Passive Inter-modulation Distortion) is a concern for the design work. It is used in connecting communication cables.
Features and Benefits
• Beryllium copper contact
• Bronze body plating
• Gold contact plating
• Impedance is 50ohm
• Low loss construction
• Operating frequency is 11GHz
• Operating temperature ranges between -65°C and 165°C
• Solder termination method
• Threaded mating
• Waterproof
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
