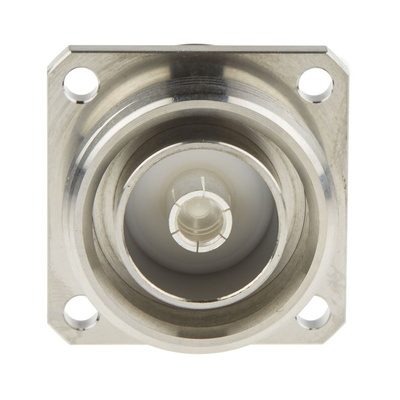

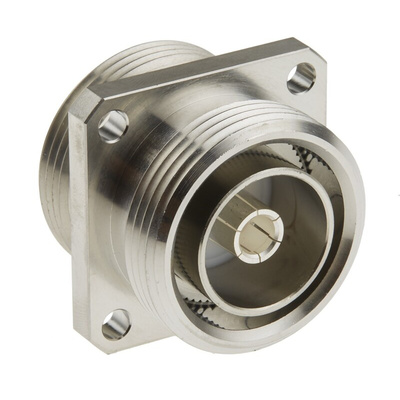

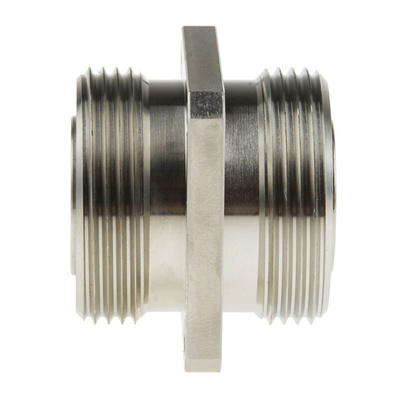

RS PRO Cable Mount 7/16 Jack to Jack Adaptor
The RS PRO 7/16 is a straight jack to jack adaptor, cable mount connector. This low PIM connector is ideal where PIM (Passive Inter-modulation Distortion) is a concern to the design work. This connector is designed with low loss construction and has waterproof protection. The housing is made of bronze plating and beryllium copper with silver plating is the contact material. There are 4 holes on 1.260in square flange for fixing on the housing.
Features and Benefits
• Impedance is 50ohm
• Operating frequency is DC-7.5GHz
• Operating temperature range is between -55°C and 155°C
• Solder termination
• V. S. W. R: 1.1 MAX@3 GHz
• Wireless/ Wi-Fi/ GSM base station
Applications
• Antenna systems
• Base stations
• Lightning protection
• Satellite communications
• Wireless infrastructure
