RS PRO Cable Mount SMA Connectors

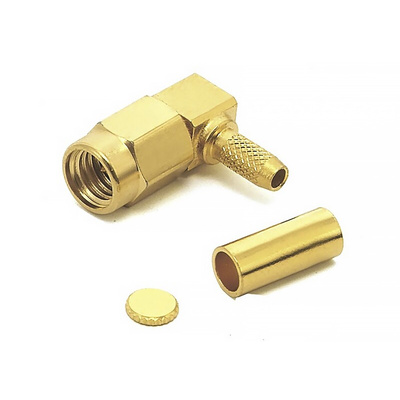

The RS PRO SSMA right angle plug connector is used for cable application. SSMA connectors are microminiature RF connectors with a screw-coupling, which are similar to SMA series but designed for smaller diameter semi-rigid cable. We suggest that the centre contact be assembled with the cable inner conductor by soldering, and the ferrule be crimped on the cable for transmission and fixing. It has gold-plated beryllium copper contacts.
Features and Benefits
• Frequency range is DC-6GHz
• Impedance is 50ohm
• Operating temperature ranges between -65°C and 165°C
• Termination method is crimp
• Voltage rating is 250V
Applications
• Compatible with RG174U, RG316U and RG188 cables
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
