RS PRO Cable Mount SMA Connectors

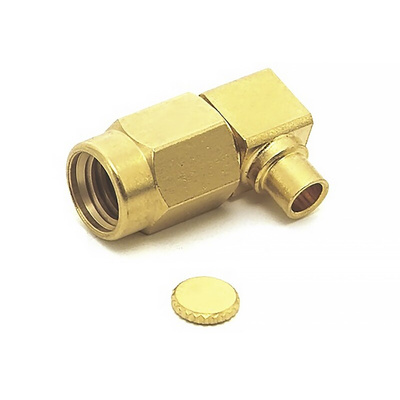

The RS PRO SSMA right angle plug connector is used for cable application. SSMA connectors are microminiature RF connectors with a screw-coupling, which are similar to SMA series but designed for smaller diameter semi-rigid cable. We suggest that the centre contact be assembled with the cable inner conductor by soldering, and the ferrule be crimped on the cable for transmission and fixing. It has a threaded connection. It has gold plated beryllium copper contacts.
Features and Benefits
• Frequency range is 12.4GHz
• Impedance is 50ohm
• Operating temperature range is between -65°C and 165°C
• Termination method is solder
• Voltage rating is 250V
Applications
• Compatible with RG405/U (UT.085") cables.
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
