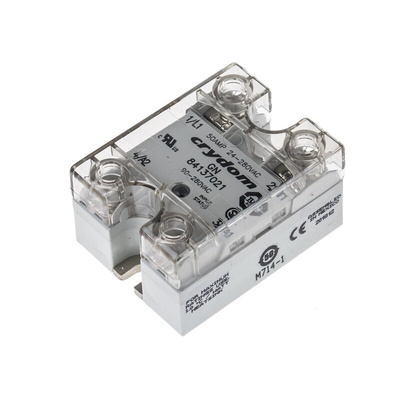

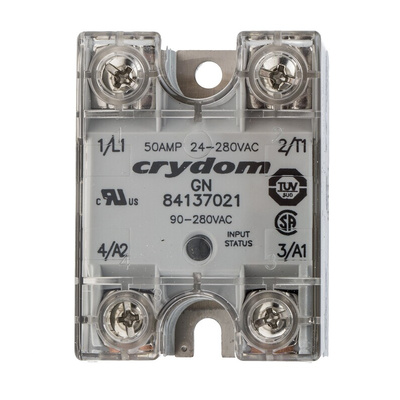

84137021, Sensata / Crydom GN Series Solid State Relay, 50 A rms Load, Panel Mount, 280 V ac Load, 280 V ac Control, Реле

Sensata | Crydom Solid-State Relay, Aluminium Baseplate Material, 4000Vrms Dielectric Strength - GN Series - 84137021

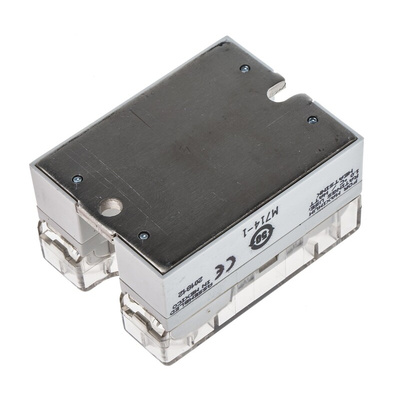

For quick and safe switching of your industrial loads, make the change to this solid-state relay from Sensata | Crydom. It opens and closes your circuit when it receives a control signal, giving you automated command over your equipment. As it has no moving parts, there's no risk of mechanical wear during operation, so you can cross maintenance off your list. The relay has a durable aluminium baseplate that's resistant to impact and corrosion, making it a safe bet for rugged settings. You'll find this piece of kit used in the automation and robotics industry.

• Dielectric strength of 4000Vrms shows it offers effective insulation
• Wide operating temperature range between -40°C and +80°C for use in challenging settings
• Integrated LED indicator for ease of status monitoring
• Compact dimensions of 58.8 (L) x 44.5 (W) x 30.9mm (D) for space-efficient installation in confined setups

How do I ensure the optimal performance of this SSR?

To help this unit keep its cool during operation, you should use a heat sink to prevent overheating.

Current rating 10 and 125 Amps
Output voltage 24-280 VAC and 48-660 VAC
LED Input Status Indicator
Improved SEMS screw and washer
Redesigned housing with anti-rotation barriers

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
